PXT2222A Datasheet NPN General Purpose Amplifier

Manufacturer: Yangjie Electronic

Overview: PXT2222A RoHS COMPLIANT NPN General Purpose Amplifier.

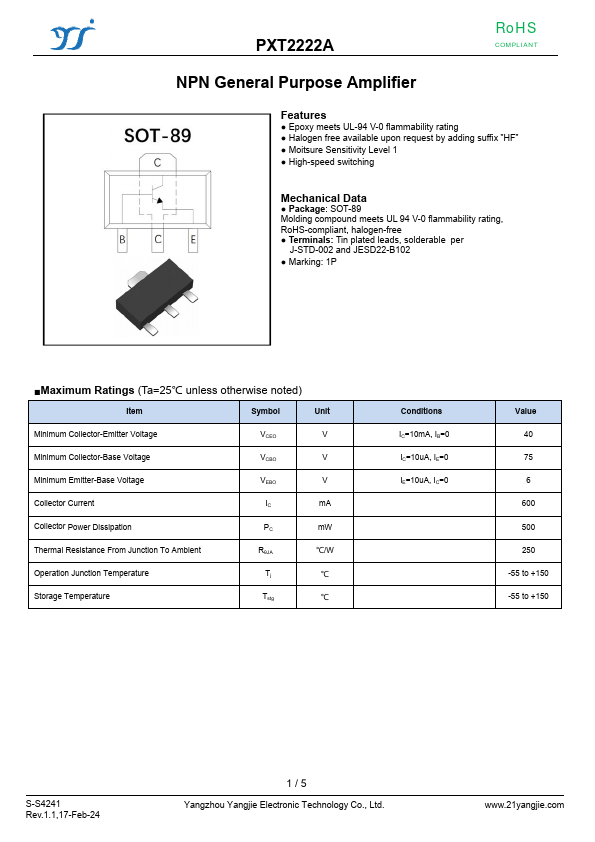

PXT2222A datasheet preview

Datasheet Details

Part number	PXT2222A
Manufacturer	Yangjie Electronic
File Size	452.10 KB
Description	NPN General Purpose Amplifier
Datasheet	PXT2222A-YangzhouYangjie.pdf

Key Features

Epoxy meets UL-94 V-0 flammability rating.
Halogen free available upon request by adding suffix ”HF”.
Moitsure Sensitivity Level 1.
High-speed switching Mechanical Data.
Package: SOT-89 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free.
Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102.
Marking: 1P.
Maximum Ratings (Ta=25℃ unless otherwise noted) Item Symbol Unit Minimum Collector-Emitter Voltage.
