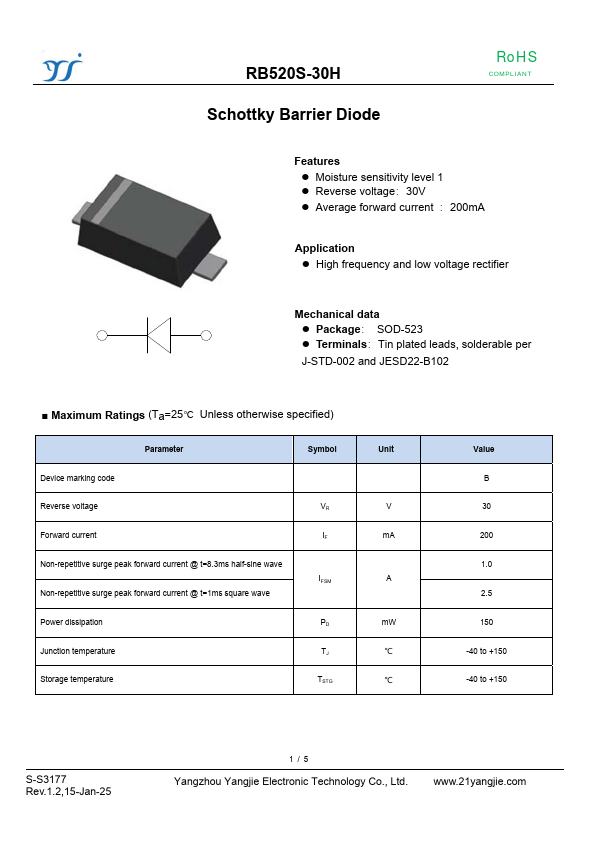

RB520S-30H
RB520S-30H is Schottky Barrier Diode manufactured by Yangjie Electronic.
RB520S-30H Schottky Barrier Diode
RoHS
PLIANT
Features
- Moisture sensitivity level 1
- Reverse voltage：30V
- Average forward current ：200mA
Application
- High frequency and low voltage rectifier
Mechanical data
- Package： SOD-523
- Terminals：Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Maximum Ratings (Ta=25℃ Unless otherwise specified)
Parameter Device marking code Reverse voltage Forward current Non-repetitive surge peak forward current @ t=8.3ms half-sine wave Non-repetitive surge peak forward current @ t=1ms square wave Power dissipation Junction temperature Storage temperature
Symbol
VR IF IFSM PD TJ TSTG
Unit
V mA A mW ℃ ℃
Value B 30 200 1.0 2.5
150 -40 to...
