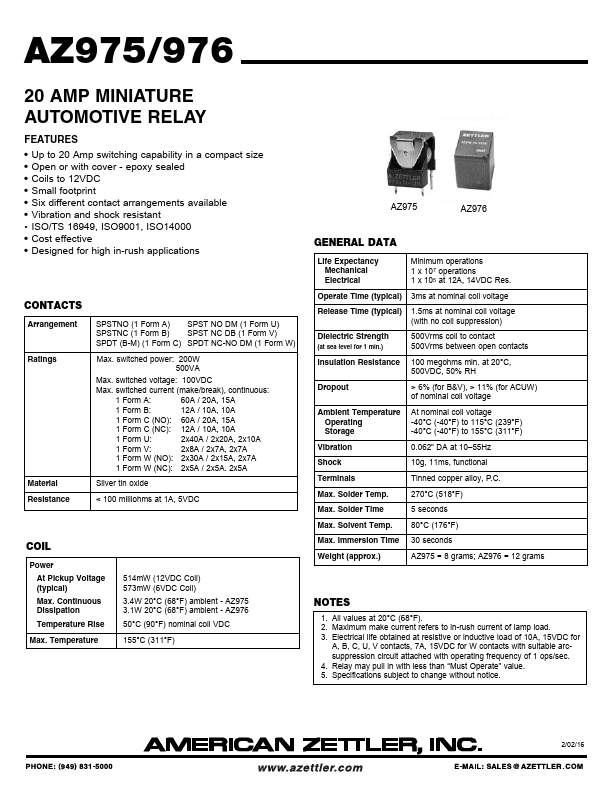

AZ975/976 20 AMP MINIATURE AUTOMOTIVE RELAY Features - Up to 20 Amp switching capability in a pact size - Open or with cover - epoxy sealed - Coils to 12VDC - Small footprint - Six different contact arrangements available - Vibration and shock resistant - ISO/TS 16949, ISO9001, ISO14000 - Cost effective - Designed for high in-rush applications CONTACTS Arrangement Ratings Material Resistance SPSTNO (1 Form A) SPST NO DM (1 Form U) SPSTNC (1 Form B) SPST NC DB (1 Form V) SPDT (B-M) (1 Form C) SPDT NC-NO DM (1 Form W) Max. switched power: 200W 500VA Max. switched voltage: 100VDC Max. switched current (make/break), continuous: 1 Form A: 1 Form B: 1 Form C (NO): 1 Form C (NC): 1 Form U: 1 Form V: 1 Form W (NO): 1 Form W (NC): 60A / 20A, 15A 12A / 10A, 10A 60A / 20A, 15A 12A / 10A, 10A 2x40A / 2x20A, 2x10A 2x8A / 2x7A, 2x7A 2x30A / 2x15A, 2x7A 2x5A / 2x5A. 2x5A Silver tin oxide < 100 milliohms at 1A, 5VDC COIL Power At Pickup Voltage (typical) Max. Continuous Dissipation Temperature Rise Max. Temperature 514m W (12VDC Coil) 573m W (6VDC Coil) 3.4W 20°C (68°F) ambient - AZ975 3.1W 20°C (68°F) ambient - AZ976 50°C (90°F) nominal coil...
