AZ976 - (AZ975 / AZ976) 20 AMP SUB-MINIATURE POWER RELAY

This page provides the datasheet information for the AZ976, a member of the AZ975 (AZ975 / AZ976) 20 AMP SUB-MINIATURE POWER RELAY family.

Features

  • Low cost Up to 20 Amp switching capability in a compact size Open, covered or sealed Coils to 24 VDC Small footprint Six different contact arrangements available Vibration and shock resistant Designed for high in-rush.

📥 Download Datasheet

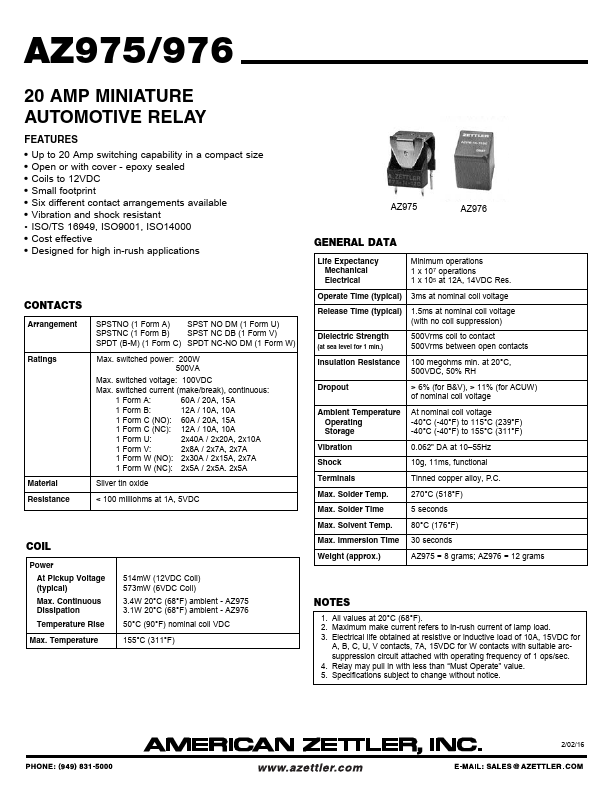

Datasheet preview – AZ976

Datasheet Details

Part number AZ976
Manufacturer ZETTLER
File Size 143.77 KB
Description (AZ975 / AZ976) 20 AMP SUB-MINIATURE POWER RELAY
Datasheet download datasheet AZ976 Datasheet

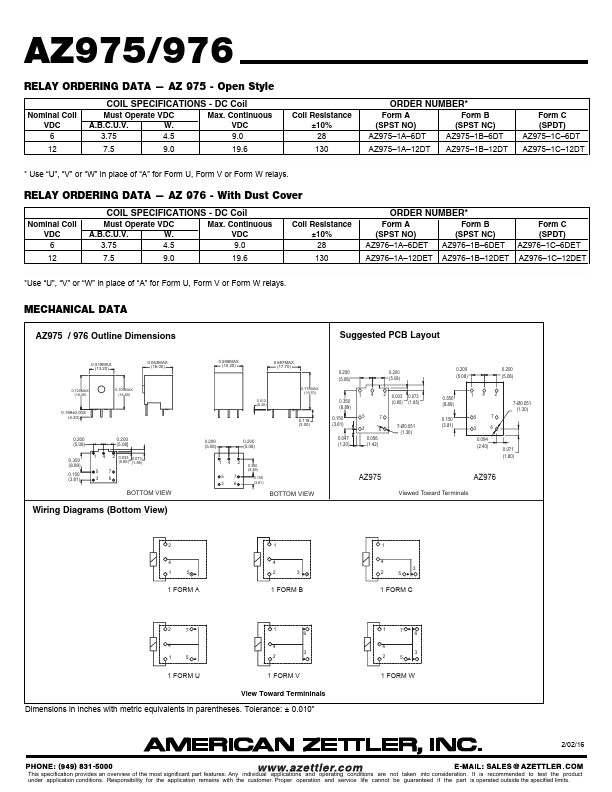

Additional preview pages of the AZ976 datasheet.

📁 Similar Datasheet

  • AZ970 - (AZ970 / AZ971) 40 AMP MINIATURE POWER RELAY (ZETTLER Electronics)
  • AZ971 - (AZ970 / AZ971) 40 AMP MINIATURE POWER RELAY (ZETTLER Electronics)
  • AZ9731F - RELAY (American Zettler)
  • AZ9731T - RELAY (American Zettler)
  • AZ978 - MINIATURE POWER RELAY (American Zettler)
  • AZ9143-04F - TVS DIODE (Leiditech)
  • AZ920 - ULTRA-SENSITIVE SUBMINIATURE RELAY (American Zettler)
  • AZ9315-01F - Transient Voltage Suppressing Device (msksemi)
  • AZ934 - 20 AMP SUB-MINIATURE POWER RELAY (ZETTLER Electronics)
  • AZ935 - 20 AMP SUB-MINIATURE POWER RELAY (ZETTLER Electronics)
Other Datasheets by ZETTLER
  • AZ9701 - (AZ9701 / AZ9711) 45 AMP AUTOMOTIVE RELAY
  • AZ9701E - (AZ9701E / AZ9711E) 45 AMP AUTOMOTIVE RELAY
  • AZ9711 - (AZ9701 / AZ9711) 45 AMP AUTOMOTIVE RELAY
  • AZ9711E - (AZ9701E / AZ9711E) 45 AMP AUTOMOTIVE RELAY
  • AZ9721 - 40 AMP AUTOMOTIVE RELAY
  • AZ9722 - 30 AMP MINIATURE POWER RELAY
  • AZ973 - 40 AMP AUTOMOTIVE RELAY
  • AZ9731 - 40 AMP MINI-ISO AUTOMOTIVE RELAY

Full PDF Text Transcription

Click to expand full text
AZ975/AZ976 20 AMP SUB-MINIATURE POWER RELAY FOR AUTOMOTIVE USE FEATURES • • • • • • • • Low cost Up to 20 Amp switching capability in a compact size Open, covered or sealed Coils to 24 VDC Small footprint Six different contact arrangements available Vibration and shock resistant Designed for high in-rush applications GENERAL DATA SPSTNO (1 Form A) SPST NO DM (1 Form U) SPSTNC (1 Form B) SPST NC DB (1 Form V) SPDT (B-M) (1 Form C) SPDT NC-NO DM (1 Form W) CONTACTS Arrangement Life Expectancy Mechanical Electrical Operate Time (typical) Release Time (typical) Dielectric Strength (at sea level for 1 min.) Minimum operations 1 x 107 operations 1 x 105 operations at 12 A 14 VDC Res. 3 ms at nominal coil voltage 1.
