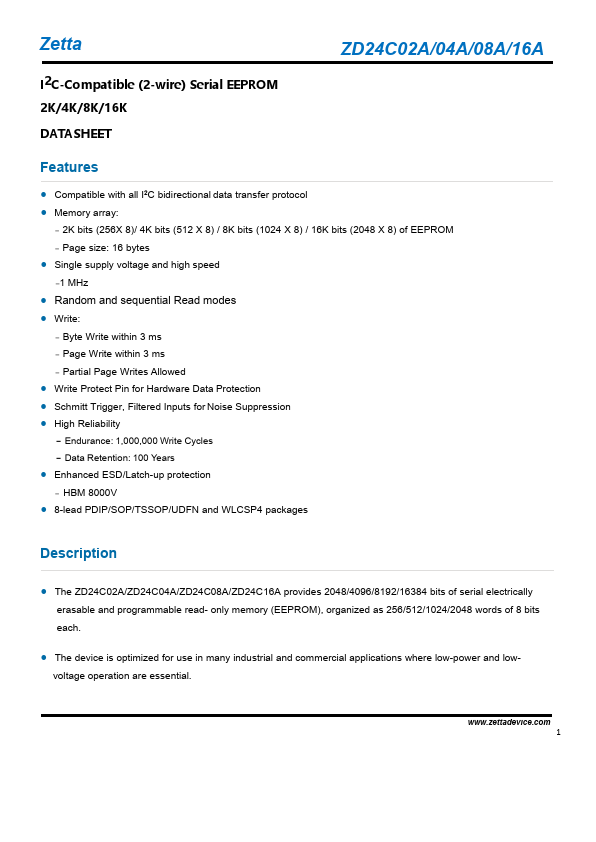

ZD24C04A Overview
Description
The ZD24C02A/ZD24C04A/ZD24C08A/ZD24C16A provides 2048/4096/8192/16384 bits of serial electrically erasable and programmable read- only memory (EEPROM), organized as 256/512/1024/2048 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and lowvoltage operation are essential.
Key Features
- Compatible with all I2C bidirectional data transfer protocol
- Memory array: – 2K bits (256X 8)/ 4K bits (512 X
- / 8K bits (1024 X
- / 16K bits (2048 X
- of EEPROM – Page size: 16 bytes
- Single supply voltage and high speed –1 MHz
- Random and sequential Read modes
- Write: – Byte Write within 3 ms – Page Write within 3 ms – Partial Page Writes Allowed
- Write Protect Pin for Hardware Data Protection
- Schmitt Trigger, Filtered Inputs for Noise Suppression
