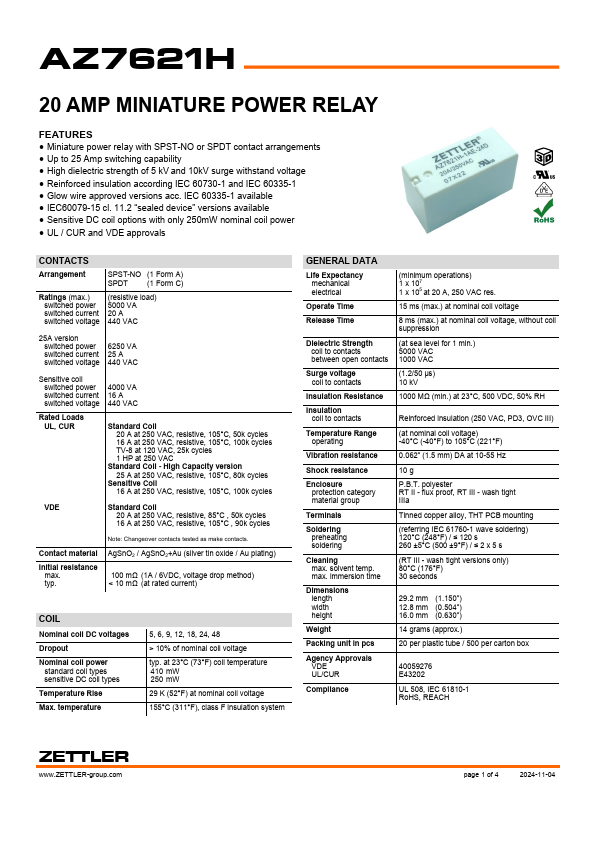

Datasheet Summary
20 AMP MINIATURE POWER RELAY
Features
- Miniature power relay with SPST-NO or SPDT contact arrangements
- Up to 25 Amp switching capability
- High dielectric strength of 5 kV and 10kV surge withstand voltage
- Reinforced insulation according IEC 60730-1 and IEC 60335-1
- Glow wire approved versions acc. IEC 60335-1 available
- IEC60079-15 cl. 11.2 “sealed device” versions available
- Sensitive DC coil options with only 250mW nominal coil power
- UL / CUR and VDE approvals
CONTACTS
Arrangement
SPST-NO (1 Form A) SPDT (1 Form C)
Ratings (max.) switched power switched current switched voltage
(resistive load) 5000 VA 20 A 440 VAC
25A version switched power switched current...
