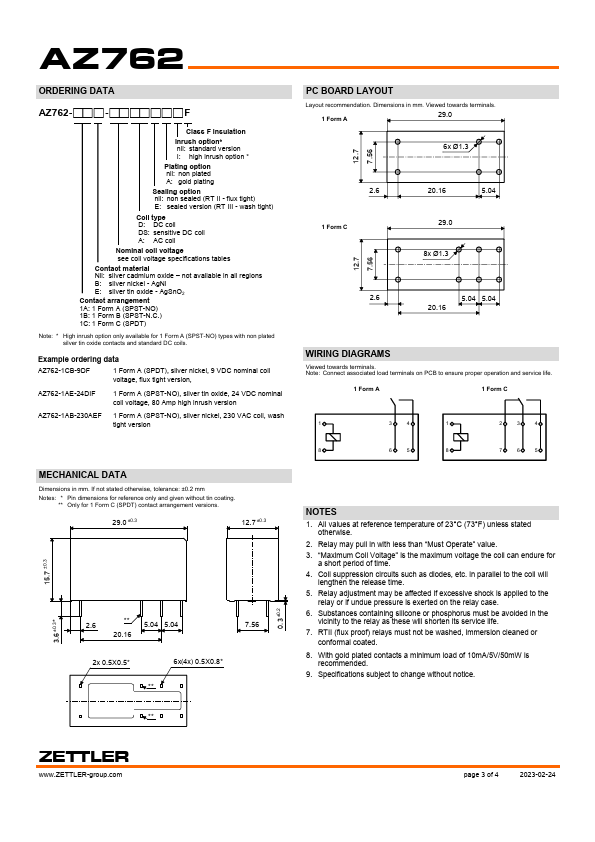

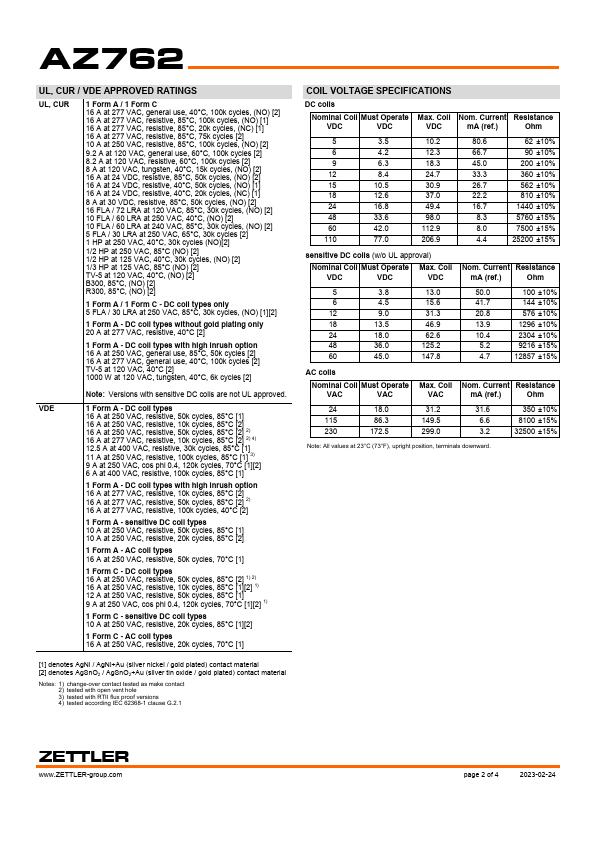

16 AMP MINIATURE POWER RELAY Features - 20 Amp switching capability, 80 Amp high inrush version available - 5 k V dielectric strength, Isolation spacing ≥ 10 mm - Reinforced insulation according IEC 60730-1, IEC 60335-1 - Glow wire approved versions acc. IEC 60335-1 available - DC coils, sensitive DC coils and AC coils available - pact size, low seated height of 15.7 mm - UL / CUR file E44211 - VDE certificate 40006031 CONTACTS Arrangement SPST-N.O. (1 Form A) SPST-N.C. (1 Form B) SPDT (1 Form C) Ratings (max.) switched power switched current switched voltage (resistive load) 480 W or 5540 VA 20 A 125 VDC- or 440 VAC - Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory. Rated Loads see section UL/VDE approved ratings Contact material Ag Ni / Ag Ni+Au (silver nickel / Au plating) Ag Sn O2 / Ag Sn O2+Au (silver tin oxide / Au plating) Initial resistance max. 100 mΩ (1A / 6VDC, voltage drop method) typ. < 10 mΩ (at rated current) COIL Nominal coil voltages Dropout DC coil types AC coil types Coil power DC coil types nominal at pickup voltage sensitive DC coil types nominal at pickup voltage AC coil types nominal at pickup voltage Temperature Rise DC coil types sensitive DC coil types Max. temperature see coil voltage specifications tables > 10% of nominal coil voltage > 15% of nominal coil voltage typ. at 23°C (73°F) coil temperature 400 m W 200 m W 250 m W 140 m...
