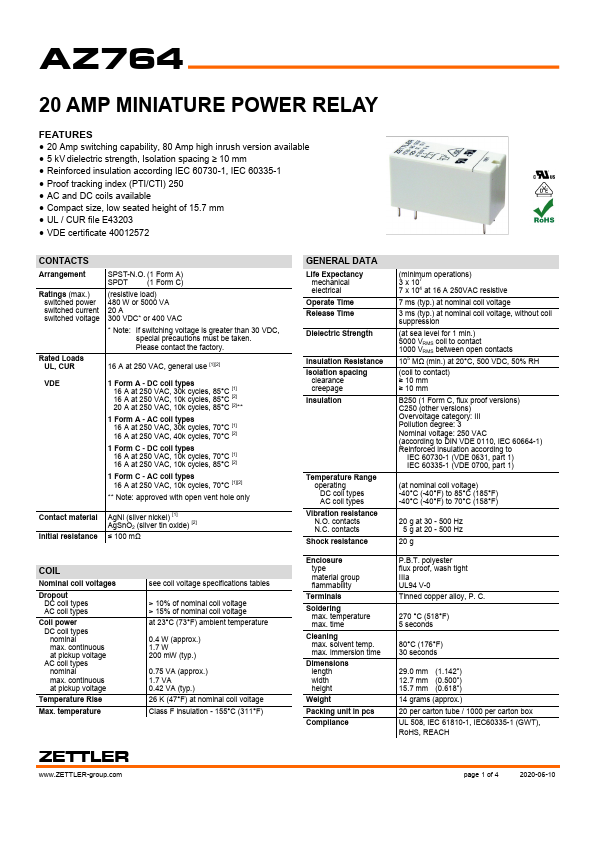

20 AMP MINIATURE POWER RELAY Features - 20 Amp switching capability, 80 Amp high inrush version available - 5 k V dielectric strength, Isolation spacing ≥ 10 mm - Reinforced insulation according IEC 60730-1, IEC 60335-1 - Proof tracking index (PTI/CTI) 250 - AC and DC coils available - pact size, low seated height of 15.7 mm - UL / CUR file E43203 - VDE certificate 40012572 CONTACTS Arrangement Ratings (max.) switched power switched current switched voltage SPST-N.O. (1 Form A) SPDT (1 Form C) (resistive load) 480 W or 5000 VA 20 A 300 VDC- or 400 VAC Rated Loads UL, CUR - Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory. 16 A at 250 VAC, general use [1][2] 1 Form A - DC coil types 16 A at 250 VAC, 30k cycles, 85°C [1] 16 A at 250 VAC, 10k cycles, 85°C [2] 20 A at 250 VAC, 10k cycles, 85°C [2]- - 1 Form A - AC coil types 16 A at 250 VAC, 30k cycles, 70°C [1] 16 A at 250 VAC, 40k cycles, 70°C [2] 1 Form C - DC coil types 16 A at 250 VAC, 10k cycles, 70°C [1] 16 A at 250 VAC, 10k cycles, 85°C [2] 1 Form C - AC coil types 16 A at 250 VAC, 10k cycles, 70°C [1][2] - - Note: approved with open vent hole only Contact material Initial resistance Ag Ni (silver nickel) [1] Ag Sn O2 (silver tin oxide) [2] ≤ 100...
