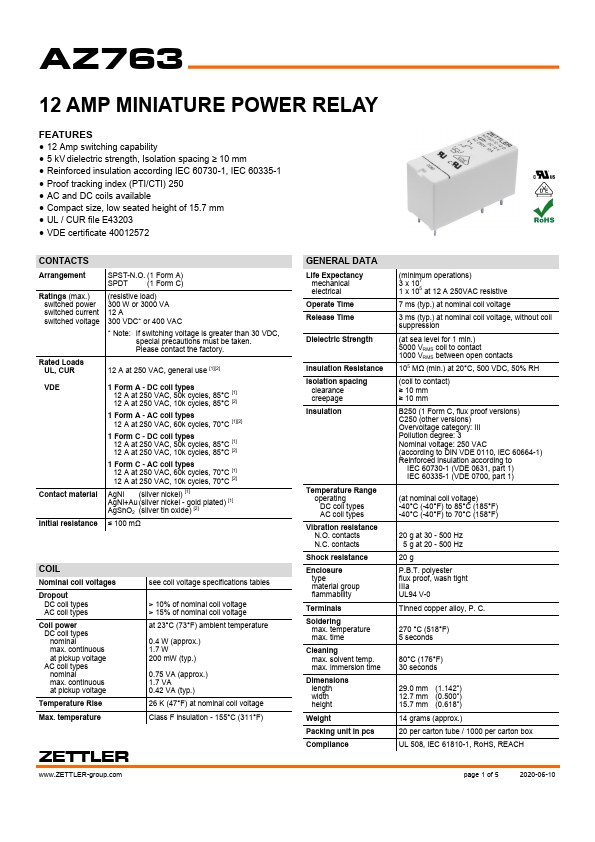

AZ763
12 A SPDT MINIATURE POWER RELAY
FEATURES www.datasheet4u.com • • • • • • • • Dielectric strength 5000 Vrms Low height: 15.7 mm Epoxy sealed version available 12 Amp switching AC and DC coils Isolation spacing greater than 10 mm Proof tracking index (PTI/CTI) 250 Reinforced insulation, EN 60730-1 (VDE 0631, part 1) EN 60335-1 (VDE 0700, part 1) • UL, CUR file E43203 • VDE file 40012572 CONTACTS
Arrangement Ratings SPDT (1 Form C) SPST (1 Form A) Resistive load: Max. switched power: 360 W or 3000 VA Max. switched current: 12 A Max. switched voltage: 300 VDC* or 400 VAC
* Note: If switching voltage is greater than 30 VDC,

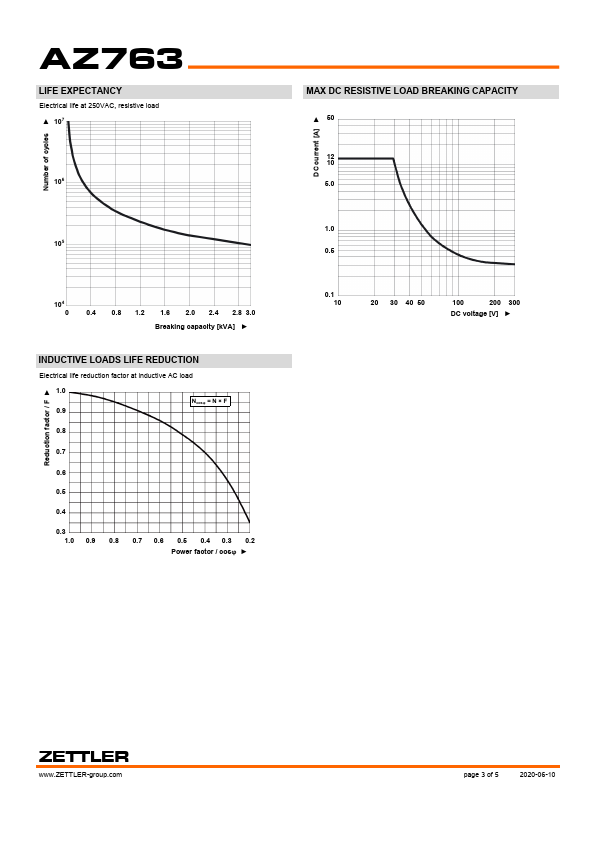

GENERAL DATA
Life Expectancy Mechanical Electrical Operate Time (typical) Release Time (typical) Minimum operations 3 x 107 1 x 105 at 12 A 250 VAC res.
AZ763 Datasheet
