AZ952 - SUBMINIATURE POWER RELAY

Download the AZ952 datasheet PDF. This datasheet also covers the AZ951 variant, as both devices belong to the same subminiature power relay family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Subminiature size for high density packaging.
  • Coil sensitivity to 116 mW.
  • Extremely low cost.
  • Coils to 24 VDC.
  • Epoxy sealed for automatic wave soldering.
  • 1 Amp, 3 Amp & 5 Amp contacts.
  • Life expectancy to 10 million operations.
  • UL, CUR file E43203.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AZ951-Zettler.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AZ952
Manufacturer Zettler
File Size 39.50 KB
Description SUBMINIATURE POWER RELAY
Datasheet download datasheet AZ952 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AZ9523-01F TVS Diode Leiditech
AZ954 SUBMINIATURE POWER RELAY ETC
AZ954X-1C-12D SUBMINIATURE POWER RELAY ETC
AZ954X-1C-12DM SUBMINIATURE POWER RELAY ETC
AZ954X-1C-12DS SUBMINIATURE POWER RELAY ETC

Other Datasheets by Zettler

Part Number Description
AZ951 SUBMINIATURE POWER RELAY
AZ957 SUBMINIATURE PC BOARD RELAY
AZ9201 ULTRA-SENSITIVE SUBMINIATURE RELAY
AZ921 ULTRA-SENSITIVE SUBMINIATURE RELAY
AZ9371 SENSITIVE SUBMINIATURE RELAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

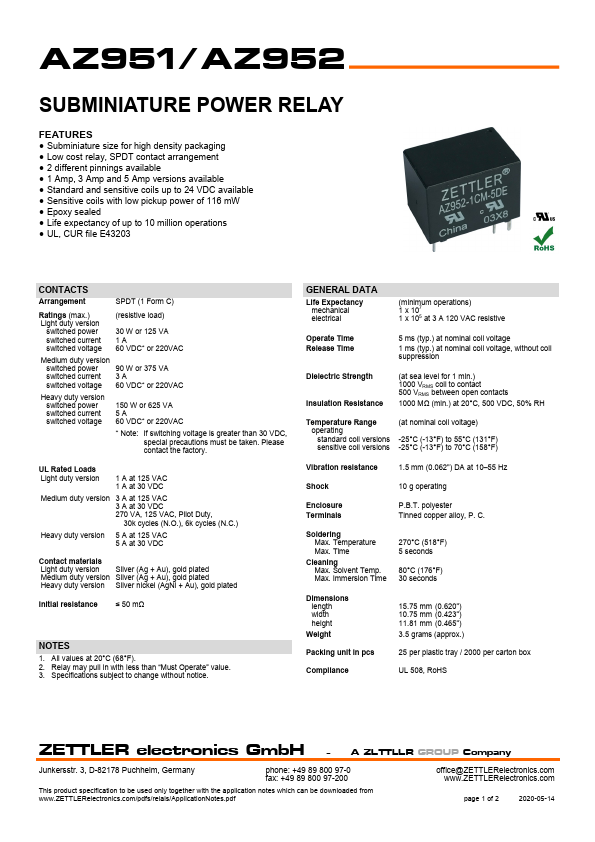

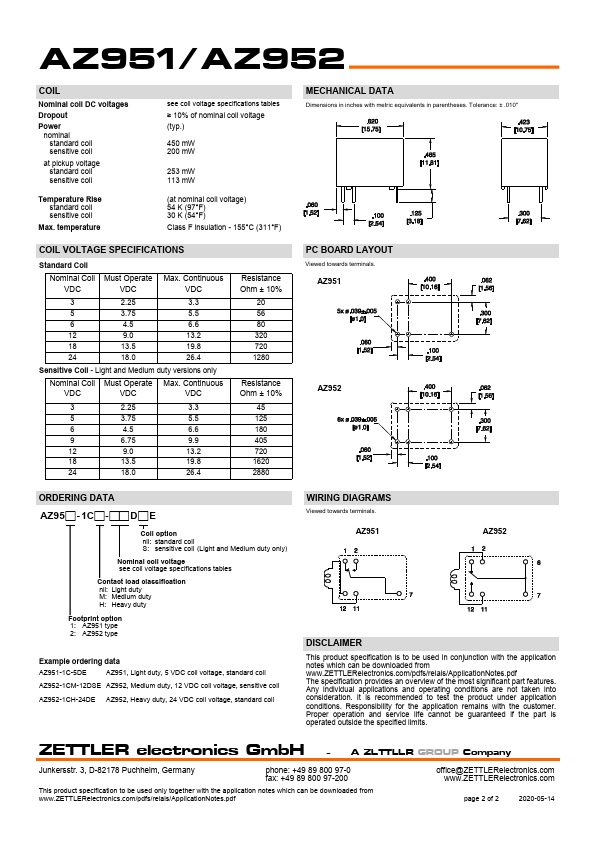

AZ951/AZ952 SUBMINIATURE POWER RELAY FEATURES • Subminiature size for high density packaging • Coil sensitivity to 116 mW • Extremely low cost • Coils to 24 VDC • Epoxy sealed for automatic wave soldering • 1 Amp, 3 Amp & 5 Amp contacts • Life expectancy to 10 million operations • UL, CUR file E43203 CONTACTS Arrangement SPDT (1 Form C) Ratings Light Duty Medium Duty Heavy Duty Material Resistive load: Max. switched power: 30 W or 125 VA Max. switched current: 1 A Max. switched voltage: 150 VDC or 300 VAC UL Rating: 1 A at 30 VDC 1 A at125 VAC Max. switched power: 90 W or 375 VA Max. switched current: 3 A Max. switched voltage: 150 VDC or 300 VAC UL Rating: 3 A at 30 VDC 3 A at 125 VAC Max. switched power: 150 W or 625 VA Max. switched current: 5 A Max.
