Datasheet Summary
Discontinued

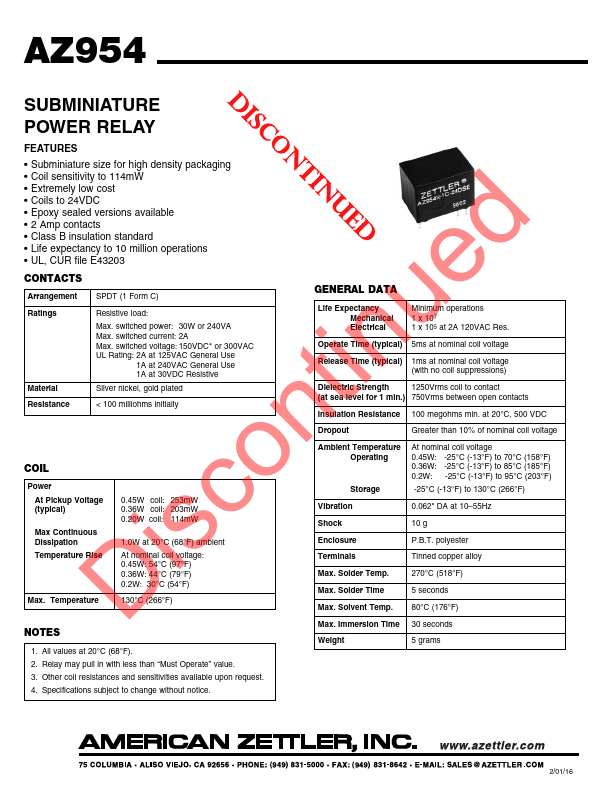

SUBMINIATURE POWER RELAY
Features
- Subminiature size for high density packaging
- Coil sensitivity to 114mW
- Extremely low cost
- Coils to 24VDC
- Epoxy sealed versions available
- 2 Amp contacts
- Class B insulation standard d
- Life expectancy to 10 million operations
- UL, CUR file E43203
CONTACTS e Arrangement SPDT (1 Form C)
Ratings tinu Material
Resistive load:
Max. switched power: 30W or 240VA Max. switched current: 2A Max. switched voltage: 150VDC- or 300VAC UL Rating: 2A at 125VAC General Use
1A at 240VAC General Use 1A at 30VDC Resistive
Silver nickel, gold plated
Resistance
< 100 milliohms initially n COIL o Power
At Pickup Voltage (typical) c...
