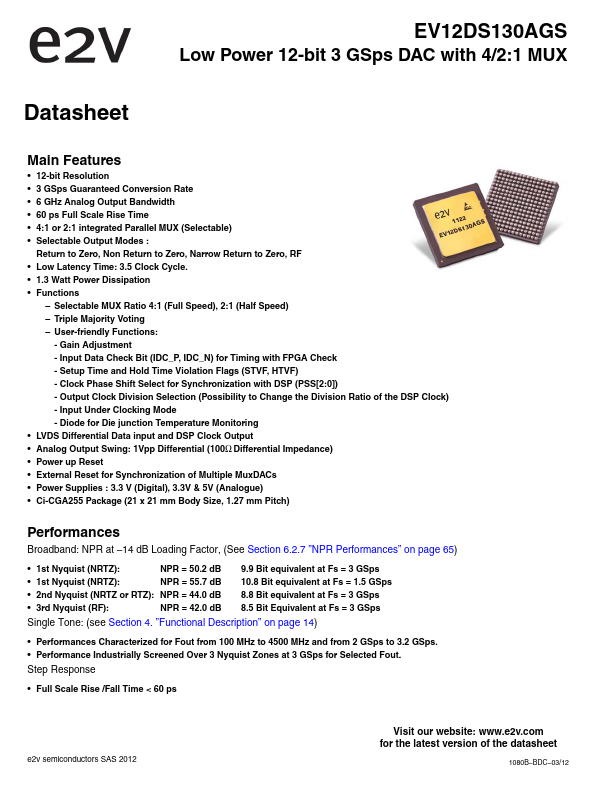

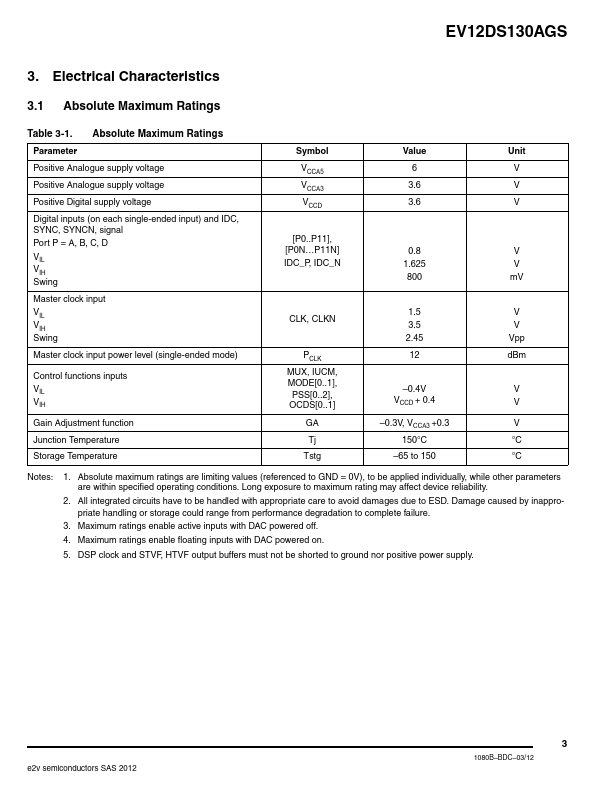

EV12DS130AGS
EV12DS130AGS is Low Power 12-bit 3 GSps DAC manufactured by e2v.
Low Power 12-bit 3 GSps DAC with 4/2:1 MUX
Main Features
- 12-bit Resolution
- 3 GSps Guaranteed Conversion Rate
- 6 GHz Analog Output Bandwidth
- 60 ps Full Scale Rise Time
- 4:1 or 2:1 integrated Parallel MUX (Selectable)
- Selectable Output Modes :
Return to Zero, Non Return to Zero, Narrow Return to Zero, RF
- Low Latency Time: 3.5 Clock Cycle.
- 1.3 Watt Power Dissipation
- Functions
- Selectable MUX Ratio 4:1 (Full Speed), 2:1 (Half Speed)
- Triple Majority Voting
- User-friendly Functions:
- Gain Adjustment
- Input Data Check Bit (IDC_P, IDC_N) for Timing with FPGA Check
- Setup Time and Hold Time Violation Flags (STVF, HTVF)
- Clock Phase Shift Select for Synchronization with DSP (PSS[2:0])
- Output Clock Division Selection (Possibility to Change the Division Ratio of the DSP Clock)
- Input Under Clocking Mode
- Diode for Die junction Temperature Monitoring
- LVDS Differential Data input and DSP Clock Output
- Analog Output Swing: 1Vpp Differential (100Ω Differential Impedance)
- Power up Reset
- External Reset for Synchronization of Multiple Mux DACs
- Power Supplies : 3.3 V (Digital), 3.3V & 5V (Analogue)
- Ci-CGA255 Package (21 x 21 mm Body Size, 1.27 mm Pitch)
Performances
Broadband: NPR...
