EV12DS130AZP Datasheet | e2v

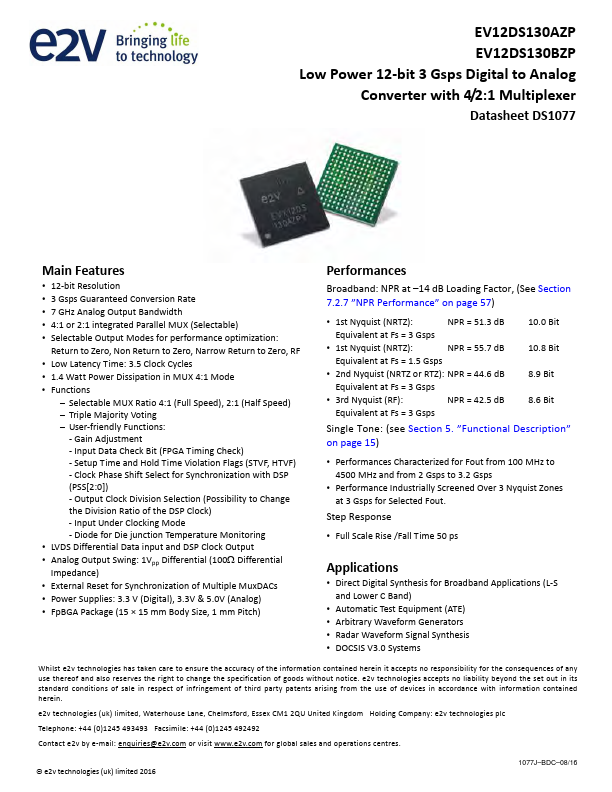

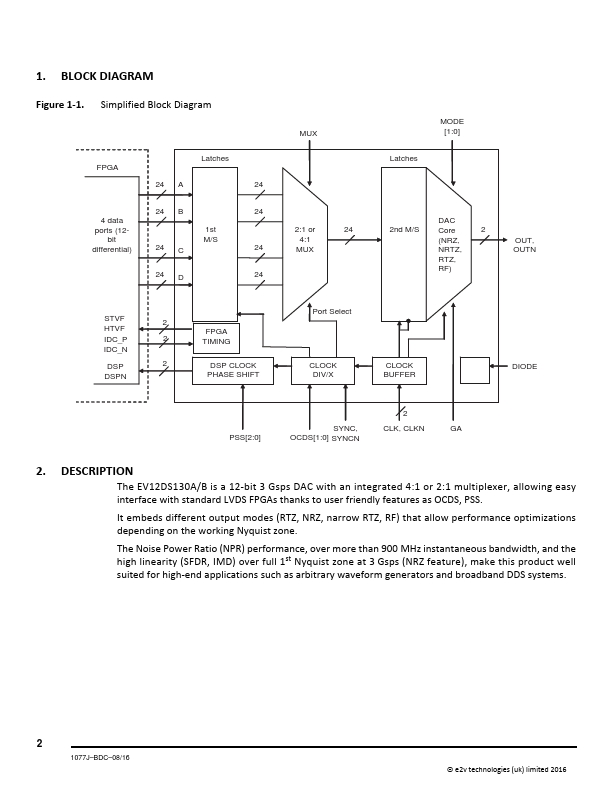

EV12DS130AZP EV12DS130BZP Low Power 12‐bit 3 Gsps Digital to Analog Converter with 4/2:1 Multiplexer Datasheet DS1077 Main Features - 12‐bit Resolution - 3 Gsps Guaranteed Conversion Rate - 7 GHz Analog Output Bandwidth - 4:1 or 2:1 integrated Parallel MUX (Selectable) - Selectable Output Modes for performance optimization: Return to Zero, Non Return to Zero, Narrow Return to Zero, RF - Low Latency Time: 3.5 Clock Cycles - 1.4 Watt Power Dissipation in MUX 4:1 Mode - Functions - Selectable MUX Ratio 4:1 (Full Speed), 2:1 (Half Speed) - Triple Majority Voting - User‐friendly Functions: ‐ Gain Adjustment ‐ Input Data Check Bit (FPGA Timing Check) ‐ Setup Time and Hold Time Violation Flags (STVF, HTVF) ‐ Clock Phase Shift Select for Synchronization with DSP (PSS[2:0]) ‐ Output Clock Division Selection (Possibility to Change the Division Ratio of the DSP Clock) ‐ Input Under Clocking Mode ‐ Diode for Die junction Temperature Monitoring - LVDS Differential Data input and DSP Clock Output - Analog Output Swing: 1Vpp Differential (100 Differential Impedance) - External Reset for Synchronization of Multiple Mux DACs - Power Supplies: 3.3 V (Digital), 3.3V & 5.0V (Analog) - Fp BGA Package (15 × 15 mm Body Size, 1 mm Pitch) Performances Broadband: NPR at - 14 d B Loading Factor, (See Section 7.2.7 ”NPR Performance” on page 57) - 1st Nyquist (NRTZ): NPR = 51.3 d B 10.0 Bit Equivalent at Fs = 3 Gsps - 1st Nyquist (NRTZ): NPR = 55.7 d B 10.8 Bit Equivalent at Fs = 1.5...
