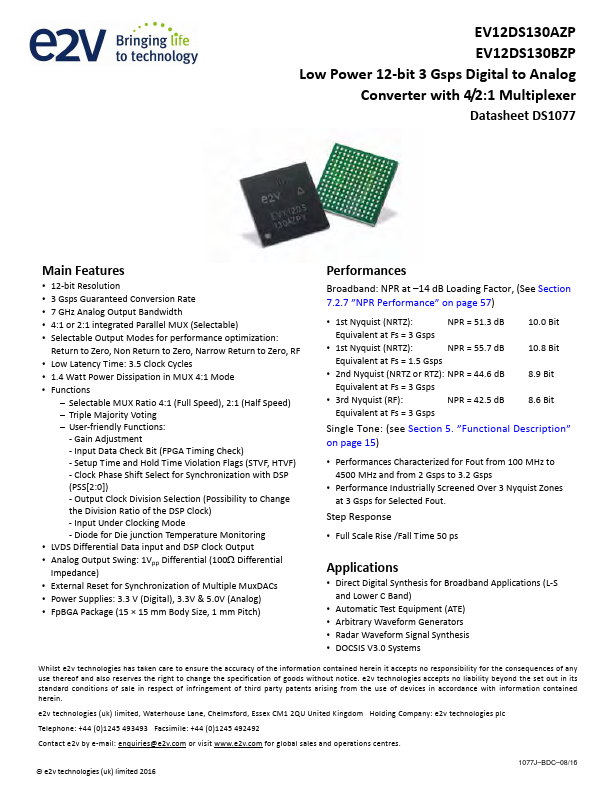

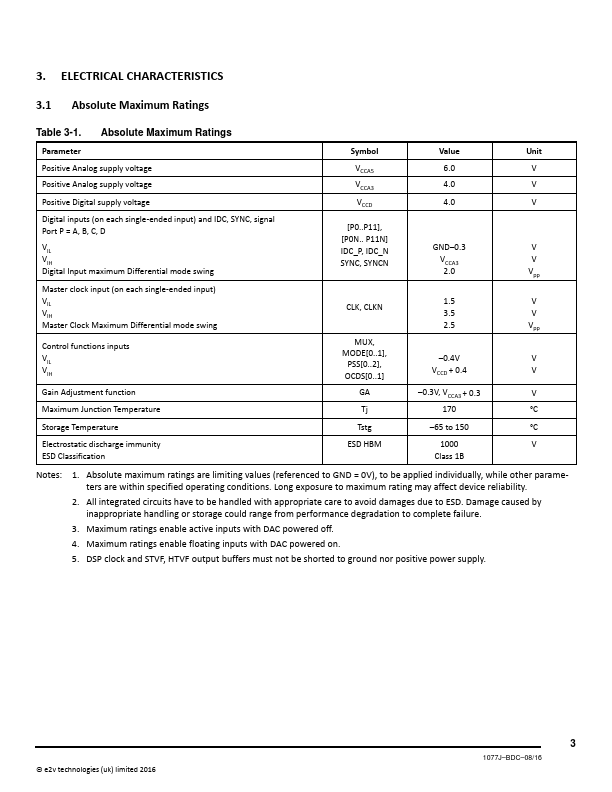

EV12DS130AZP EV12DS130BZP Low Power 12‐bit 3 Gsps Digital to Analog Converter with 4/2:1 Multiplexer
Datasheet DS1077
Main Features
- 12‐bit Resolution
- 3 Gsps Guaranteed Conversion Rate
- 7 GHz Analog Output Bandwidth
- 4:1 or 2:1 integrated Parallel MUX (Selectable)
- Selectable Output Modes for performance optimization:
Return to Zero, Non Return to Zero, Narrow Return to Zero, RF
- Low Latency Time: 3.5 Clock Cycles
- 1.4 Watt Power Dissipation in MUX 4:1 Mode
- Functions
- Selectable MUX Ratio 4:1 (Full Speed), 2:1 (Half Speed)
- Triple Majority Voting
- User‐friendly Functions:
‐ Gain Adjustment ‐ Input Data Check Bit (FPGA Timing Check) ‐ Setup Time and Hold Time Violation Flags (STVF, HTVF) ‐ Clock Phase Shift Select for Synchronization with DSP (PSS[2:0]) ‐ Output Clock Division Selection (Possibility to Change the Division Ratio of the DSP Clock) ‐ Input Under Clocking Mode ‐ Diode for Die junction Temperature Monitoring
- LVDS Differential Data input and DSP Clock Output
- Analog Output Swing: 1Vpp Differential (100 Differential Impedance)
- External Reset for Synchronization of Multiple Mux DACs
- Power Supplies: 3.3 V (Digital), 3.3V & 5.0V (Analog)
- Fp BGA Package (15 × 15 mm Body Size, 1 mm Pitch)
Performances
Broadband: NPR at
- 14 d B Loading Factor, (See Section 7.2.7 ”NPR Performance” on page 57)
- 1st Nyquist (NRTZ):
NPR = 51.3 d B 10.0 Bit
Equivalent at Fs = 3 Gsps
- 1st Nyquist (NRTZ):
NPR = 55.7 d B 10.8 Bit
Equivalent at Fs = 1.5...
