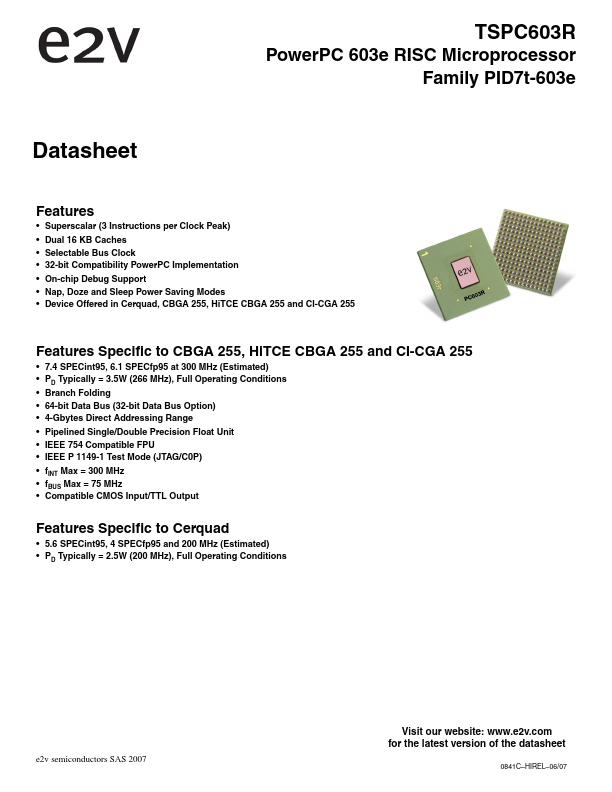

TSPC603R Datasheet | e2v

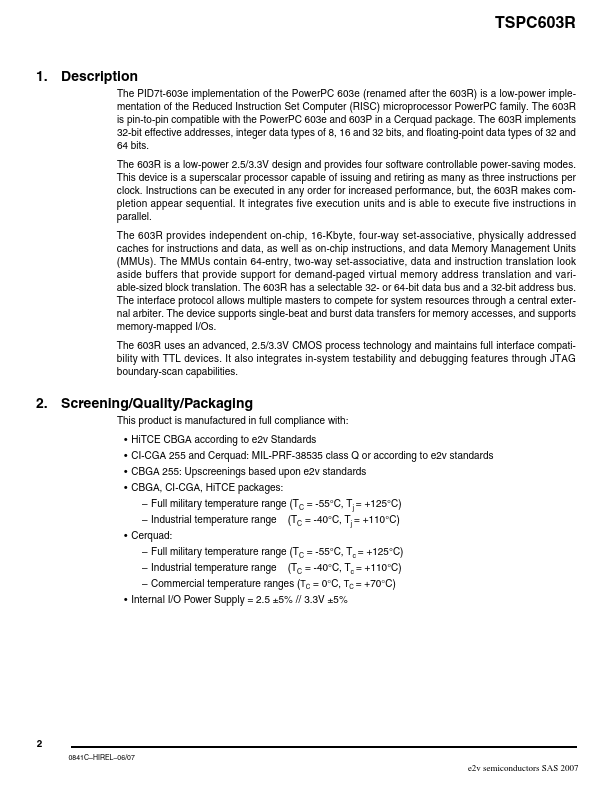

Power PC 603e RISC Microprocessor Family PID7t-603e Features - Superscalar (3 Instructions per Clock Peak) - Dual 16 KB Caches - Selectable Bus Clock - 32-bit patibility Power PC Implementation - On-chip Debug Support - Nap, Doze and Sleep Power Saving Modes - Device Offered in Cerquad, CBGA 255, Hi TCE CBGA 255 and CI-CGA 255 Features Specific to CBGA 255, Hi TCE CBGA 255 and CI-CGA 255 - 7.4 SPECint95, 6.1 SPECfp95 at 300 MHz (Estimated) - PD Typically = 3.5W (266 MHz), Full Operating Conditions - Branch Folding - 64-bit Data Bus (32-bit Data Bus Option) - 4-Gbytes Direct Addressing Range - Pipelined Single/Double Precision Float Unit - IEEE 754 patible FPU - IEEE P 1149-1 Test Mode (JTAG/C0P) - f INT Max = 300 MHz - f BUS Max = 75 MHz - patible CMOS Input/TTL Output Features Specific to Cerquad - 5.6 SPECint95, 4 SPECfp95 and 200 MHz (Estimated) - PD Typically = 2.5W (200 MHz), Full Operating Conditions e2v semiconductors SAS 2007 Visit our website: .e2v. for the latest version of the datasheet 0841C- HIREL- 06/07 1. Description The PID7t-603e implementation of the Power PC 603e (renamed after the 603R) is a low-power implementation of the Reduced Instruction Set puter (RISC) microprocessor Power PC family. The 603R is pin-to-pin patible with the Power PC 603e and 603P in a Cerquad package. The 603R implements 32-bit effective addresses, integer data types of 8, 16 and 32 bits, and floating-point data types of 32 and 64...
