Texas Instruments ADC3663
The ADC3661, ADC3662, and ADC3663 (ADC366x) family of devices are low-noise, ultra-low power, 16bit, 10-MSPS to 65-MSPS, high-speed, dual-channel, analog-to-digital converters (ADCs). Designed for low noise performance, these devices deliver a noise spectral density of –158 dBFS/Hz combined with great linearity and dynamic range. The ADC366x offers good dc precision together with IF sampling support making these devices suitable for a wide range of applications.| Part No. | ADC3663 |
|---|---|
| Datasheet | ADC3663 Download |
| Manufacturer |  Texas Instruments |
| Description | 16-Bit Low-Noise Low Power Dual-Channel ADC |
| Buy | Stock & Price |

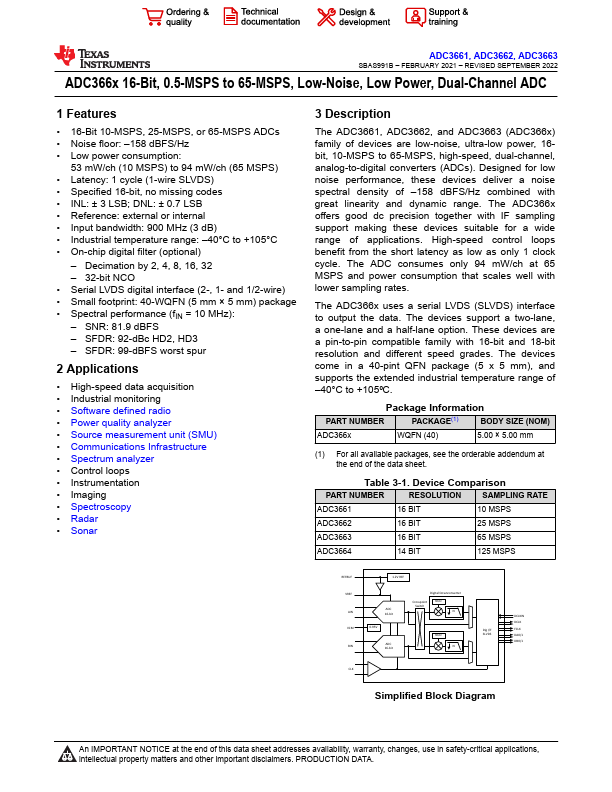

FEATURES
● 16-Bit 10-MSPS, 25-MSPS, or 65-MSPS ADCs● Noise floor: –158 dBFS/Hz
● Low power consumption: 53 mW/ch (10 MSPS) to 94 mW/ch (65 MSPS)
● Latency: 1 cycle (1-wire SLVDS)
● Specified 16-bit, no missing codes
● INL: ± 3 LSB; DNL: ± 0.7 LSB
● Reference: external or internal
● Input bandwidth: 900 MHz (3 dB)
● Industrial temperature range: –40°C to +105°C
● On-chip digital filter (optional) – Decimation by 2, 4, 8, 16, 32 – 32-bit NCO
● Serial LVDS digital interface (2-, 1- and 1/2-wire)
● Small footprint: 40-WQFN (5 mm × 5 mm) package
● Spectral performance (fIN = 10 MHz): – SNR: 81.9 dBFS – SFDR: 92-dBc HD2, HD3 – SFDR: 99-dBFS worst spur 2
APPLICATIONS
● High-speed data acquisition● Industrial monitoring
● Software defined radio
● Power quality analyzer
● Source measurement unit (SMU)
● Communications Infrastructure
● Spectrum analyzer
● Control loops
● Instrumentation
● Imaging
● Spectroscopy
● Radar
● Sonar 3
DESCRIPTION
High-speed control loops benefit from the short latency as low as only 1 clock cycle.
