ADC3662 Datasheet 16-bit Low-noise Low Power Dual-channel Adc

Manufacturer: Texas Instruments

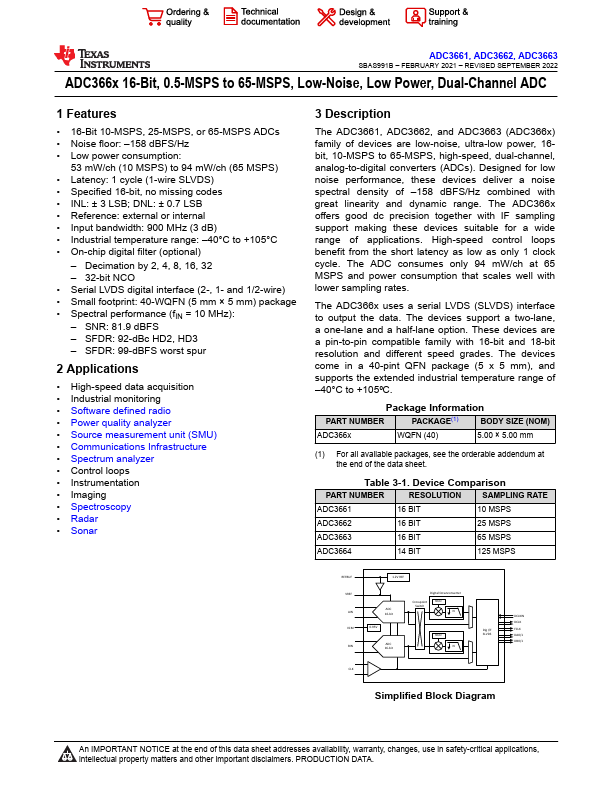

Overview: ADC3661, ADC3662, ADC3663 SBAS991B – FEBRUARY 2021 – REVISED SEPTEMBER 2022 ADC366x 16-Bit, 0.

This datasheet includes multiple variants, all published together in a single manufacturer document.

General Description

The ADC3661, ADC3662, and ADC3663 (ADC366x) family of devices are low-noise, ultra-low power, 16bit, 10-MSPS to 65-MSPS, high-speed, dual-channel, analog-to-digital converters (ADCs).

Designed for low noise performance, these devices deliver a noise spectral density of –158 dBFS/Hz combined with great linearity and dynamic range.

The ADC366x offers good dc precision together with IF sampling support making these devices suitable for a wide range of applications.

Key Features

  • 16-Bit 10-MSPS, 25-MSPS, or 65-MSPS ADCs.
  • Noise floor:.
  • 158 dBFS/Hz.
  • Low power consumption: 53 mW/ch (10 MSPS) to 94 mW/ch (65 MSPS).
  • Latency: 1 cycle (1-wire SLVDS).
  • Specified 16-bit, no missing codes.
  • INL: ± 3 LSB; DNL: ± 0.7 LSB.
  • Reference: external or internal.
  • Input bandwidth: 900 MHz (3 dB).
  • Industrial temperature range:.
  • 40°C to +105°C.
  • On-chip digital filter (optional).
  • Dec.
