AM2432 - Sitara Microcontrollers

Download the AM2432 datasheet PDF. This datasheet also covers the AM2434 variant, as both devices belong to the same sitara microcontrollers family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Processor cores:.
  • Up to 2× Dual-core Arm Cortex®-R5F MCU subsystems operating at up to 800MHz, highlyintegrated for real-time processing.
  • Dual-core Arm Cortex®-R5F clusters support dual-core and single-core operation.
  • 32KB I-cache and 32KB D-cache per R5F core with SECDED ECC on all memories.
  • Single-core: 128KB TCM per cluster (128KB TCM per R5F core).
  • Dual-core: 128KB TCM per cluster (64KB TCM per R5F core).
  • 1× Single-core Arm Cortex®-M4F MC.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AM2434-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
Am2401 Dua11024-Bit Dynamic Shift Register AMD
AM240320H5TNQW-00H LCD Module Ampire
AM240320M8TNQW-T00H TFT LCD Module AMP DISPLAY
AM2406 600mA Synchronous Step-Down Converter Xiang Shuo
AM24LC02 CMOS EEPROM ATC

Other Datasheets by Texas Instruments

Part Number Description
AM2431 Sitara Microcontrollers
AM2434 Sitara Microcontrollers
AM2631 Microcontrollers
AM2631-Q1 Microcontrollers
AM2632 Microcontrollers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

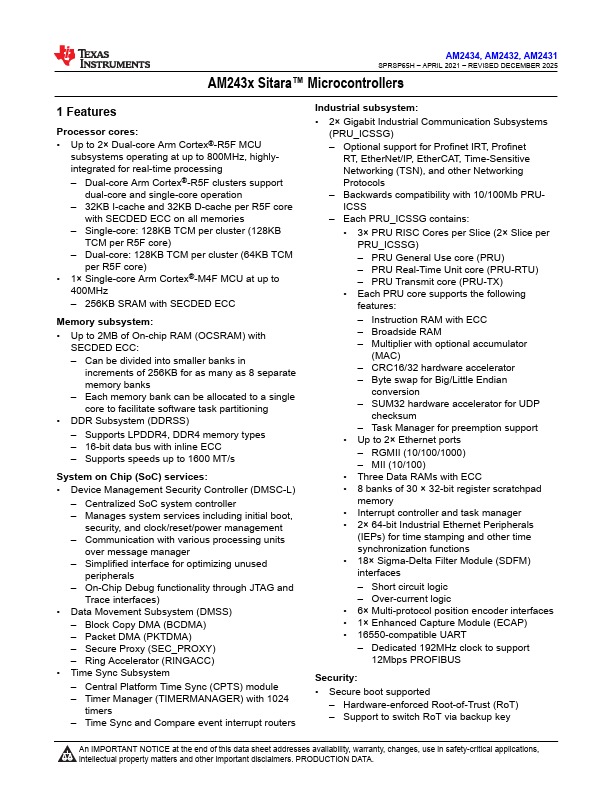

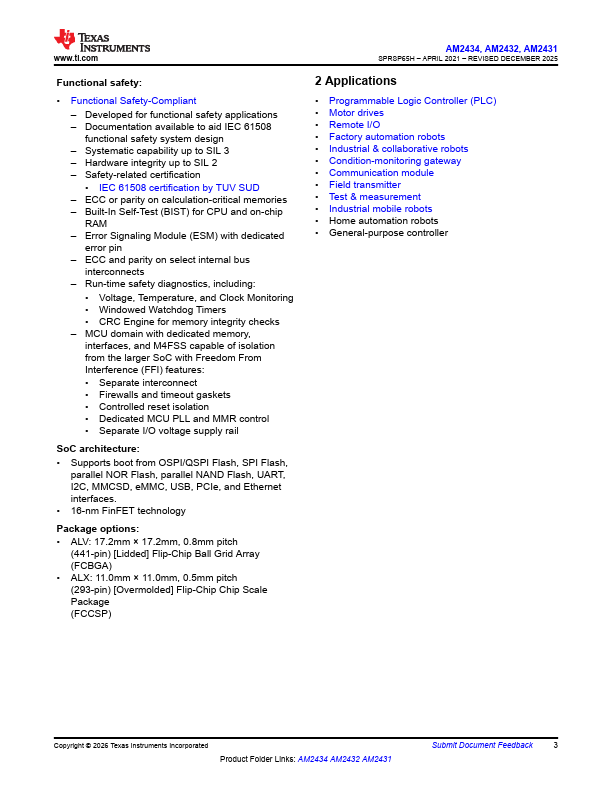

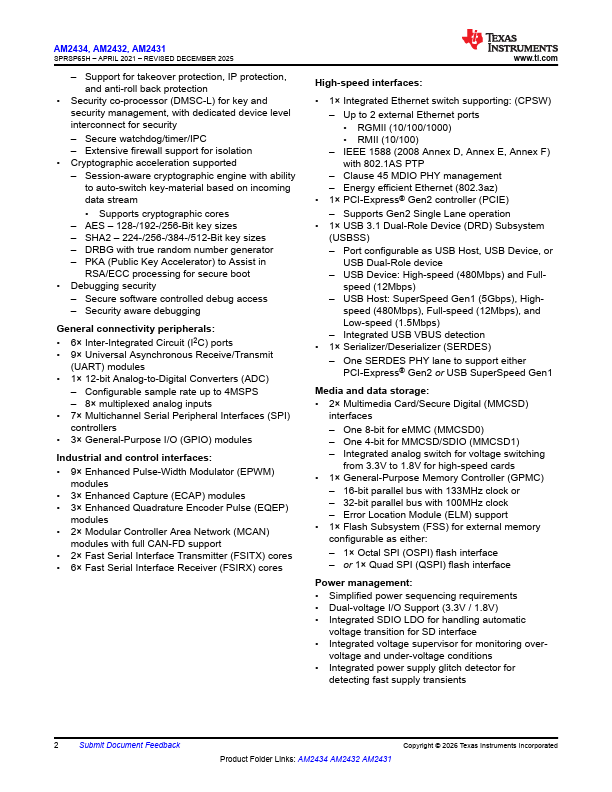

AM2434, AM2432, AM2431 SPRSP65G – APRIL 2021 – REVISED MAY 2024 AM243x Sitara™ Microcontrollers 1 Features Processor cores: • Up to 2× Dual-core Arm Cortex®-R5F MCU subsystems operating at up to 800MHz, highlyintegrated for real-time processing – Dual-core Arm Cortex®-R5F clusters support dual-core and single-core operation – 32KB I-cache and 32KB D-cache per R5F core with SECDED ECC on all memories – Single-core: 128KB TCM per cluster (128KB TCM per R5F core) – Dual-core: 128KB TCM per cluster (64KB TCM per R5F core) • 1× Single-core Arm Cortex®-M4F MCU at up to 400MHz – 256KB SRAM with SECDED ECC Memory subsystem: • Up to 2MB of On-chip RAM (OCSRAM) with SECDED ECC: – Can be divided into smaller banks in increments of 256KB for as many as 8 separate memory banks – Each memory bank can b
