AM2611 Overview
AM2612, AM2611, AM2611-Q1, AM2612-Q1 SPRSPA7C SEPTEMBER 2024 REVISED JULY 2025 AM261x Sitara™ Microcontrollers.

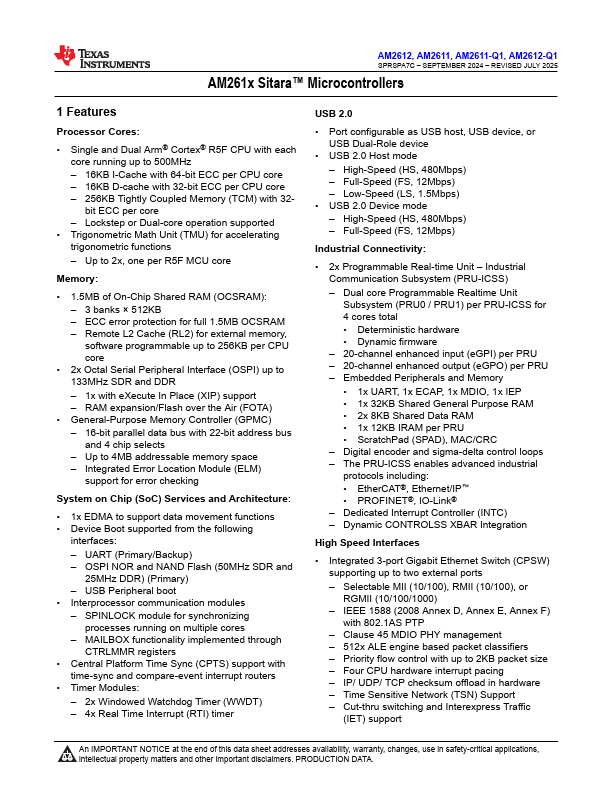

AM2611 Key Features
- Single and Dual Arm® Cortex® R5F CPU with each core running up to 500MHz
- 16KB I-Cache with 64-bit ECC per CPU core
- 16KB D-cache with 32-bit ECC per CPU core
- 256KB Tightly Coupled Memory (TCM) with 32bit ECC per core
- Lockstep or Dual-core operation supported
- Trigonometric Math Unit (TMU) for accelerating trigonometric functions
- Up to 2x, one per R5F MCU core
- 1.5MB of On-Chip Shared RAM (OCSRAM)
- 3 banks × 512KB
- ECC error protection for full 1.5MB OCSRAM
