MSPM0C1103 - Mixed-Signal Microcontroller

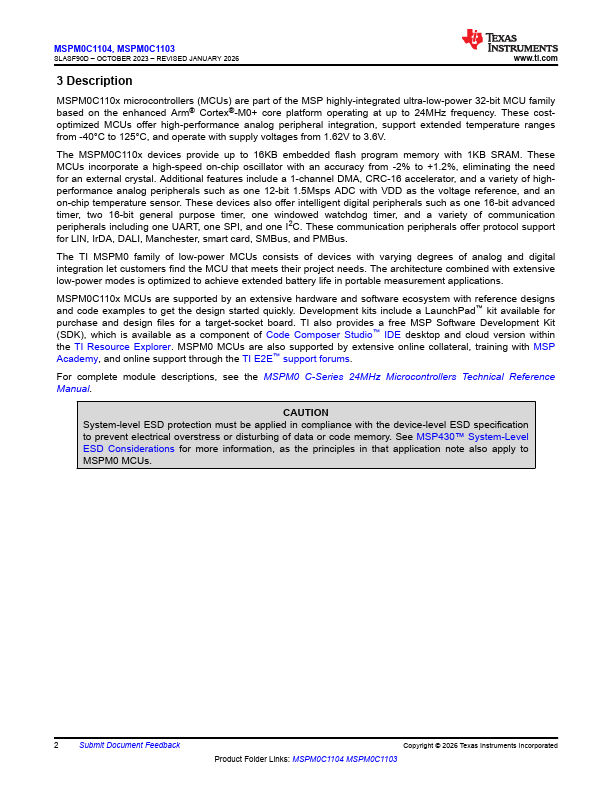

General Description

MSPM0C110x microcontrollers (MCUs) are part of the MSP highly-integrated ultra-low-power 32-bit MCU family based on the enhanced Arm® Cortex®-M0+ core platform operating at up to 24MHz frequency.

Key Features

  • Core.
  • Arm® 32-bit Cortex®-M0+ CPU, frequency up to 24MHz.
  • Operating characteristics.
  • Extended temperature:.
  • 40°C to 125°C.
  • Wide supply voltage range: 1.62V to 3.6V.
  • Memories.
  • Up to 16KB of flash.
  • 1KB of SRAM.
  • High-performance analog peripherals.
  • One analog-to-digital converter (ADC) with up to 10 total external channels, 1.7Msps at 10 bit or 1.5Msps at 12 bit with VDD as the voltage reference.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MSP-600 DIGITALLY COMPENSATED EMI/RFI PROTECTED STAINLESS STEEL ISOLATED PRESSURE TRANSDUCER ETC
MSP0203 P-Channel Enhancement Mode Power MOSFET MORESEMI
MSP0204 P-Channel Enhancement Mode Power MOSFET MORESEMI
MSP0204E P-Channel Enhancement Mode Power MOSFET MORESEMI
MSP0205 P-Channel Enhancement Mode Power MOSFET MORESEMI

Other Datasheets by Texas Instruments

Part Number Description
MSPM0C1104 Mixed-Signal Microcontroller
MSPM0C1105 Mixed-Signal Microcontrollers
MSPM0C1106 Mixed-Signal Microcontrollers
MSPM0G1106 Mixed-Signal Microcontrollers
MSPM0G1107 Mixed-Signal Microcontrollers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
MSPM0C1104, MSPM0C1103 SLASF90C – OCTOBER 2023 – REVISED FEBRUARY 2025 MSPM0C110x, MSPS003 Mixed-Signal Microcontrollers 1 Features • Core – Arm® 32-bit Cortex®-M0+ CPU, frequency up to 24MHz • Operating characteristics – Extended temperature: –40°C to 125°C – Wide supply voltage range: 1.62V to 3.6V • Memories – Up to 16KB of flash – 1KB of SRAM • High-performance analog peripherals – One analog-to-digital converter (ADC) with up to 10 total external channels, 1.7Msps at 10 bit or 1.5Msps at 12 bit with VDD as the voltage reference – Configurable 1.4V or 2.
