MSPM0C1104 - Mixed-Signal Microcontroller

Download the MSPM0C1104 datasheet PDF. This datasheet also covers the MSPM0C1103 variant, as both devices belong to the same mixed-signal microcontroller family and are provided as variant models within a single manufacturer datasheet.

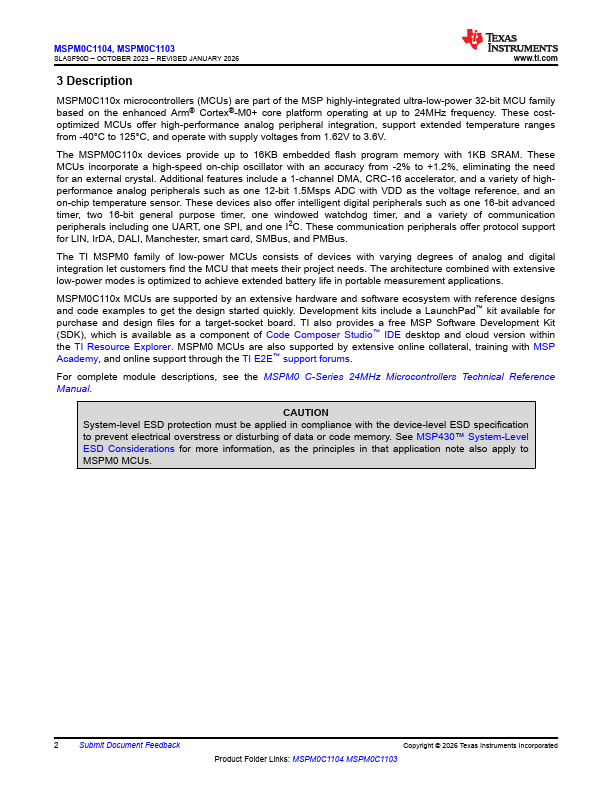

General Description

MSPM0C110x microcontrollers (MCUs) are part of the MSP highly-integrated ultra-low-power 32-bit MCU family based on the enhanced Arm® Cortex®-M0+ core platform operating at up to 24MHz frequency.

Key Features

  • Core.
  • Arm® 32-bit Cortex®-M0+ CPU, frequency up to 24MHz.
  • Operating characteristics.
  • Extended temperature:.
  • 40°C to 125°C.
  • Wide supply voltage range: 1.62V to 3.6V.
  • Memories.
  • Up to 16KB of flash.
  • 1KB of SRAM.
  • High-performance analog peripherals.
  • One analog-to-digital converter (ADC) with up to 10 total external channels, 1.7Msps at 10 bit or 1.5Msps at 12 bit with VDD as the voltage reference.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MSPM0C1103-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MSP-600 DIGITALLY COMPENSATED EMI/RFI PROTECTED STAINLESS STEEL ISOLATED PRESSURE TRANSDUCER ETC
MSP0203 P-Channel Enhancement Mode Power MOSFET MORESEMI
MSP0204 P-Channel Enhancement Mode Power MOSFET MORESEMI
MSP0204E P-Channel Enhancement Mode Power MOSFET MORESEMI
MSP0205 P-Channel Enhancement Mode Power MOSFET MORESEMI

Other Datasheets by Texas Instruments

Part Number Description
MSPM0C1103 Mixed-Signal Microcontroller
MSPM0C1105 Mixed-Signal Microcontrollers
MSPM0C1106 Mixed-Signal Microcontrollers
MSPM0G1106 Mixed-Signal Microcontrollers
MSPM0G1107 Mixed-Signal Microcontrollers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
MSPM0C1104, MSPM0C1103 SLASF90C – OCTOBER 2023 – REVISED FEBRUARY 2025 MSPM0C110x, MSPS003 Mixed-Signal Microcontrollers 1 Features • Core – Arm® 32-bit Cortex®-M0+ CPU, frequency up to 24MHz • Operating characteristics – Extended temperature: –40°C to 125°C – Wide supply voltage range: 1.62V to 3.6V • Memories – Up to 16KB of flash – 1KB of SRAM • High-performance analog peripherals – One analog-to-digital converter (ADC) with up to 10 total external channels, 1.7Msps at 10 bit or 1.5Msps at 12 bit with VDD as the voltage reference – Configurable 1.4V or 2.
