REF3125-Q1
REF3125-Q1 is SOT-23 Series Voltage Reference manufactured by Texas Instruments.
- Part of the REF3112-Q1 comparator family.
- Part of the REF3112-Q1 comparator family.
REF31-Q1
SBVS299A
- APRIL 2017
- REVISED SEPTEMBER 2025

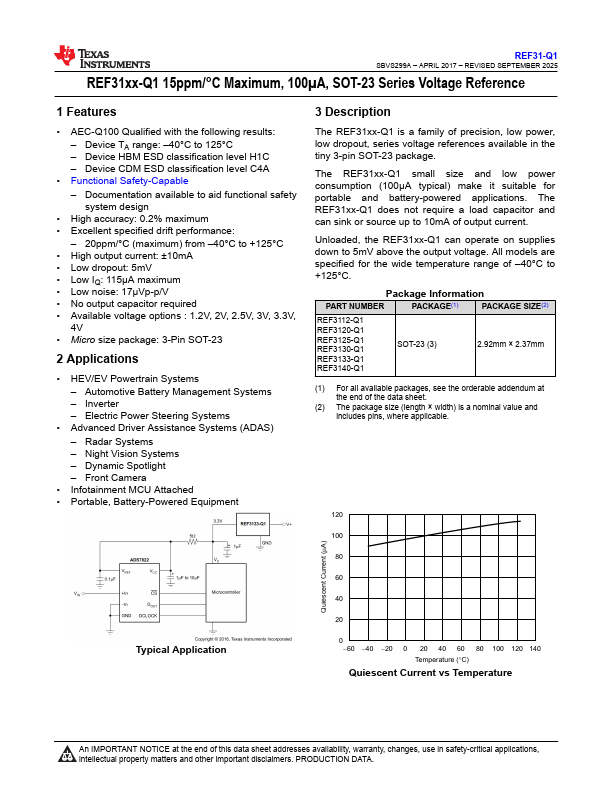

REF31xx-Q1 15ppm/°C Maximum, 100µA, SOT-23 Series Voltage Reference
1 Features
- AEC-Q100 Qualified with the following results:
- Device TA range:
- 40°C to 125°C
- Device HBM ESD classification level H1C
- Device CDM ESD classification level C4A
- Functional Safety-Capable
- Documentation available to aid functional safety system design
- High accuracy: 0.2% maximum
- Excellent specified drift performance:
- 20ppm/°C (maximum) from
- 40°C to +125°C
- High output current: ±10mA
- Low dropout: 5mV
- Low IQ: 115µA maximum
- Low noise: 17µVp-p/V
- No output capacitor required
- Available voltage options : 1.2V, 2V, 2.5V, 3V, 3.3V,
4V
-...
