Datasheet Summary
SN74HC00, SN54HC00
SCLS181H
- DECEMBER 1982
- REVISED AUGUST 2021
SNx4HC00 Quadruple 2-Input NAND Gates
1 Features
- Buffered inputs
- Wide operating voltage range: 2 V to 6 V
- Wide operating temperature range:
- 40°C to +85°C
- Supports fanout up to 10 LSTTL loads
- Significant power reduction pared to LSTTL logic ICs
2 Applications
- Alarm / tamper detect circuit
- S-R latch
3 Description

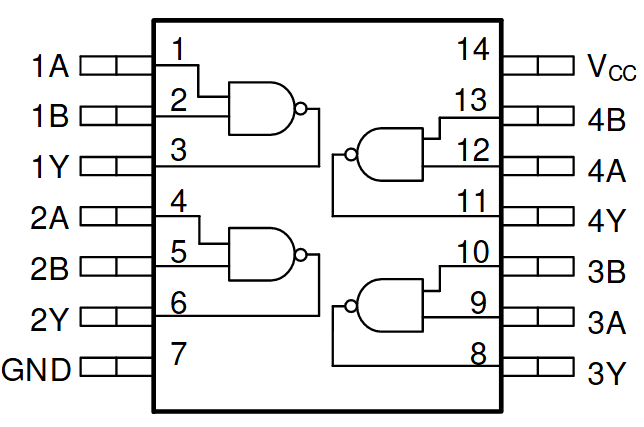

This device contains four independent 2-input NAND Gates. Each gate performs the Boolean function Y = A
- B in positive logic.
Device Information
PART NUMBER
PACKAGE(1) BODY SIZE (NOM)
SN74HC00D
SOIC (14)
8.70 mm × 3.90 mm
SN74HC00DB
SSOP (14)
6.50 mm × 5.30 mm
SN74HC00N
PDIP (14)
19.30...
