SN74HC00D - Quadruple 2-Input Positive-NAND Gates

Download the SN74HC00D datasheet PDF. This datasheet also covers the SN74HC00 variant, as both devices belong to the same quadruple 2-input positive-nand gates family and are provided as variant models within a single manufacturer datasheet.

General Description

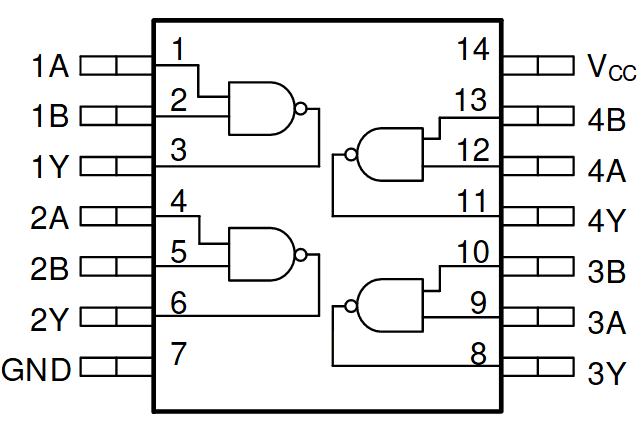

This device contains four independent 2-input NAND Gates.

B in positive logic.

Key Features

  • Buffered inputs.
  • Wide operating voltage range: 2 V to 6 V.
  • Wide operating temperature range:.
  • 40°C to +85°C.
  • Supports fanout up to 10 LSTTL loads.
  • Significant power reduction compared to LSTTL logic ICs 2.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SN74HC00-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
SN74HC06 Hex Inverter Lingxing Microelectronics
SN74HC182 FUNCTION LOOK AHEAD CARRY GENERATOR ST Microelectronics
SN74HC423 DUAL RETRIGGERABLE MONOSTABLE MULTIVIBRATOR ST Microelectronics
SN74HCT06 Hex Inverter Lingxing Microelectronics
SN74H74N Dual D-Type Flip-Flop ETC

Other Datasheets by Texas Instruments

Part Number Description
SN74HC00 Quadruple 2-Input Positive-NAND Gates
SN74HC00-Q1 QUADRUPLE 2-INPUT POSITIVE-NAND GATE
SN74HC00N Quadruple 2-Input Positive-NAND Gates
SN74HC02 Quadruple 2-Input Positive-NOR Gates
SN74HC02-EP QUADRUPLE 2-INPUT POSITIVE-NOR GATE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
SN74HC00, SN54HC00 SCLS181H – DECEMBER 1982 – REVISED AUGUST 2021 SNx4HC00 Quadruple 2-Input NAND Gates 1 Features • Buffered inputs • Wide operating voltage range: 2 V to 6 V • Wide operating temperature range: –40°C to +85°C • Supports fanout up to 10 LSTTL loads • Significant power reduction compared to LSTTL logic ICs 2 Applications • Alarm / tamper detect circuit • S-R latch 3 Description This device contains four independent 2-input NAND Gates. Each gate performs the Boolean function Y = A ● B in positive logic. Device Information PART NUMBER PACKAGE(1) BODY SIZE (NOM) SN74HC00D SOIC (14) 8.70 mm × 3.90 mm SN74HC00DB SSOP (14) 6.50 mm × 5.30 mm SN74HC00N PDIP (14) 19.30 mm × 6.40 mm SN74HC00NS SO (14) 10.20 mm × 5.30 mm SN74HC00PW TSSOP (14) 5.00 mm × 4.
