Part BAL74-Q
Description High-speed switching diode
Category Diode
Manufacturer Nexperia
Size 190.58 KB
BAL74-Q Datasheet (PDF) Download
Pricing from 0.03859 USD, available from DigiKey and Avnet.
🏠
Nexperia

BAL74-Q Overview

Description

High-speed switching diode encapsulated in a very small SOT23 Surface-Mounted Device (SMD) plastic package.

Key Features

  • Small plastic SMD package
  • High switching speed: max. 4 ns
  • Continuous reverse voltage: max. 50 V
  • Repetitive peak reverse voltage: max. 50 V
  • Repetitive peak forward current: max. 500 mA
  • Qualified according to AEC-Q101 and recommended for use in automotive applications

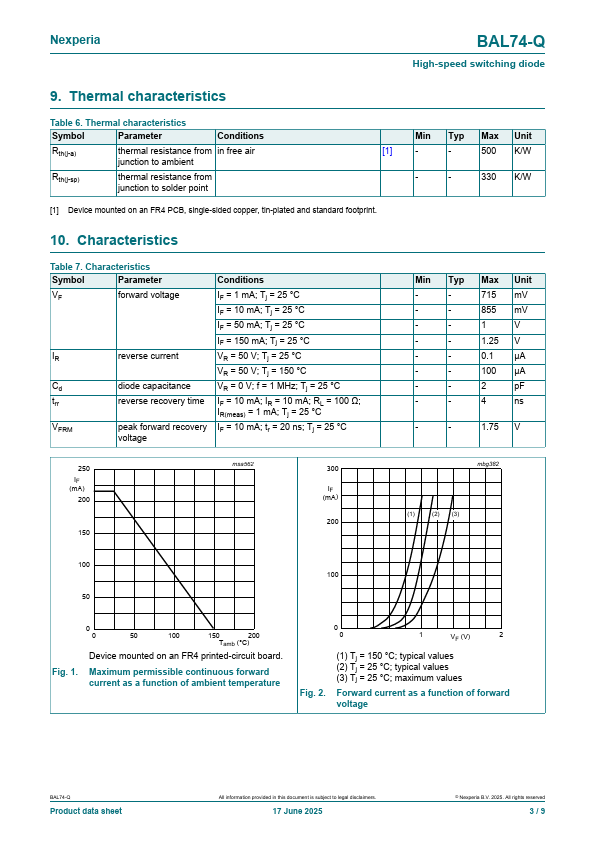

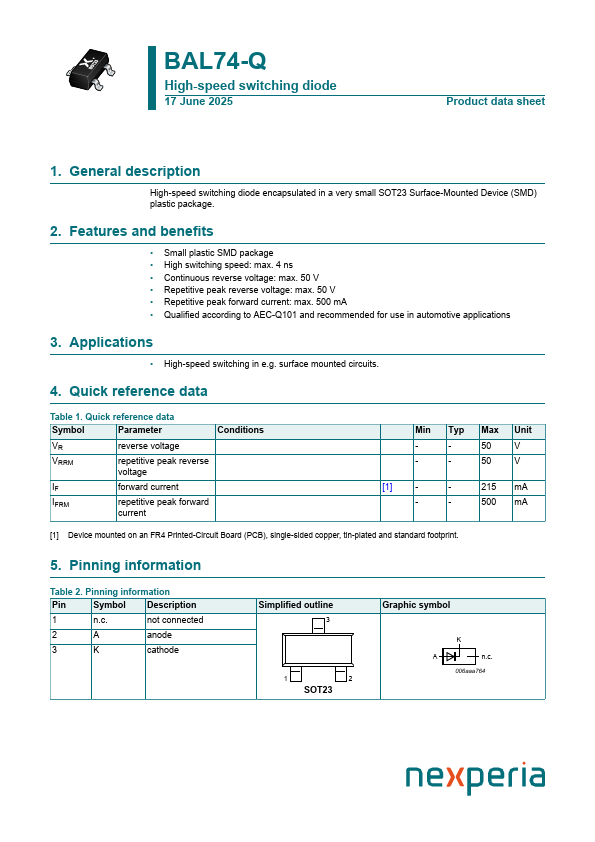

BAL74-Q datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
DigiKey 0 3000+ : 0.03859 USD
6000+ : 0.03444 USD
9000+ : 0.03232 USD
15000+ : 0.02994 USD		 View Offer
Avnet 0 36000+ : 0.03167 USD
72000+ : 0.03151 USD
144000+ : 0.03135 USD
288000+ : 0.03119 USD		 View Offer
