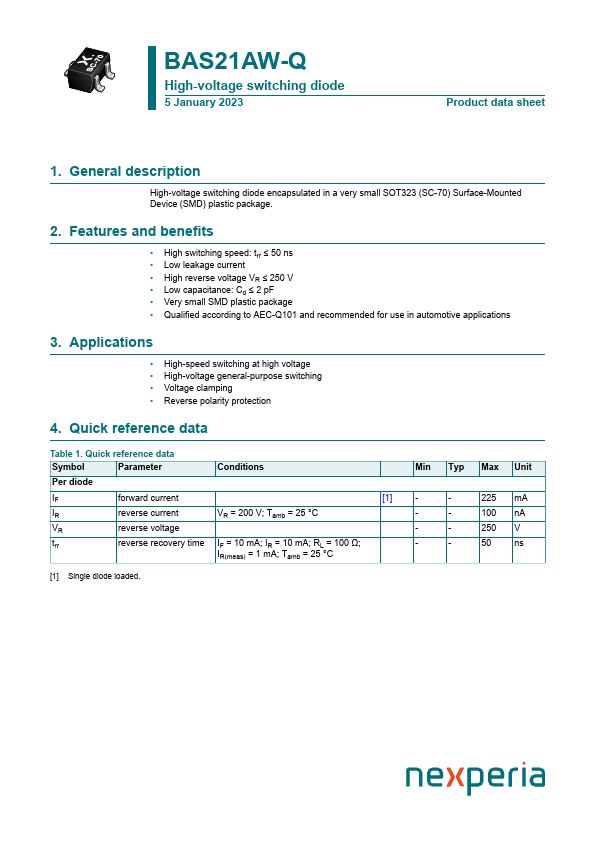

BAS21AW-Q
BAS21AW-Q is High-voltage switching diode manufactured by Nexperia.
description
High-voltage switching diode encapsulated in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- High switching speed: trr ≤ 50 ns
- Low leakage current
- High reverse voltage VR ≤ 250 V
- Low capacitance: Cd ≤ 2 p F
- Very small SMD plastic package
- Qualified according to AEC-Q101 and remended for use in automotive applications
3. Applications
- High-speed switching at high voltage
- High-voltage general-purpose switching
- Voltage clamping
- Reverse polarity protection
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
Conditions
Min Typ Max Unit
Per diode
IF forward current
[1]
- -
225 m A
IR reverse current
VR = 200 V; Tamb = 25 °C
- -
100 n A
VR reverse voltage
- -
250 V trr reverse recovery time IF = 10 m A; IR = 10 m A; RL = 100 Ω;
- -
50 ns
IR(meas) = 1 m A; Tamb = 25 °C
[1] Single diode loaded.
Nexperia

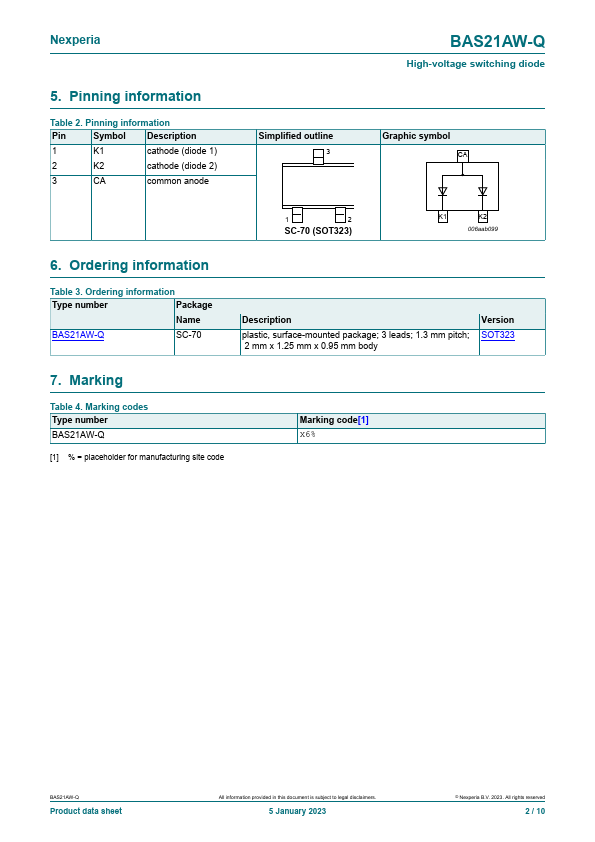

5. Pinning information
Table 2. Pinning information
Pin...
