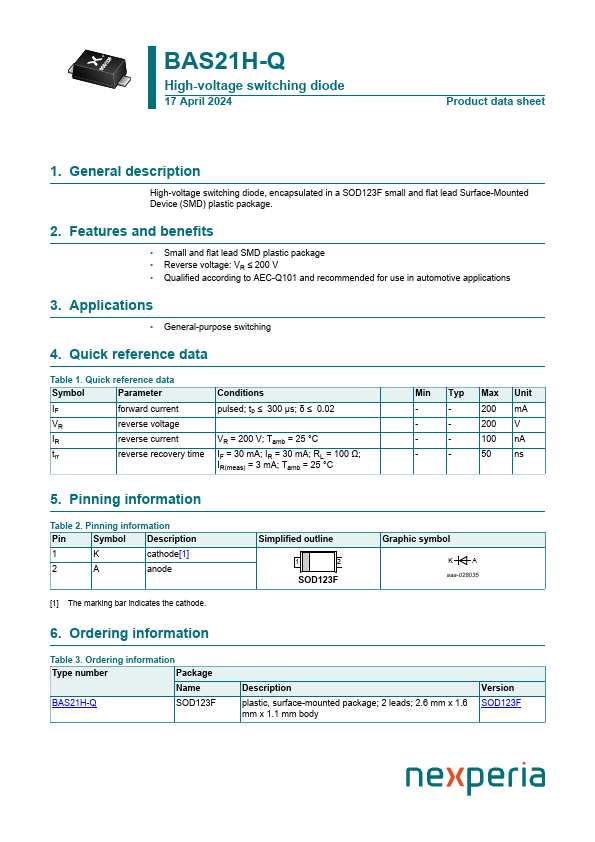

BAS21H-Q
description
High-voltage switching diode, encapsulated in a SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- Small and flat lead SMD plastic package
- Reverse voltage: VR ≤ 200 V
- Qualified according to AEC-Q101 and remended for use in automotive applications
3. Applications
- General-purpose switching
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
IF forward current
VR reverse voltage
IR reverse current trr reverse recovery time
Conditions pulsed; tp ≤ 300 µs; δ ≤ 0.02
VR = 200 V; Tamb = 25 °C IF = 30 m A; IR = 30 m A; RL = 100 Ω; IR(meas) = 3 m A; Tamb = 25 °C
Min Typ Max Unit
- -
200 m A
- -
200 V
- -
100 n A
- -
50 ns
5. Pinning information
Table 2. Pinning information
Pin
Symbol Description
K cathode[1]
A anode
[1] The marking bar indicates the cathode.
Simplified outline
SOD123F

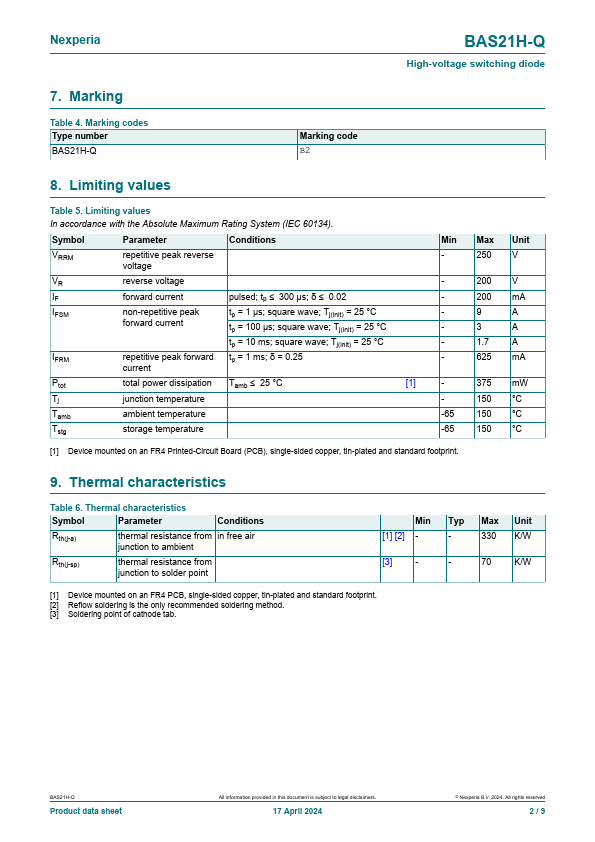

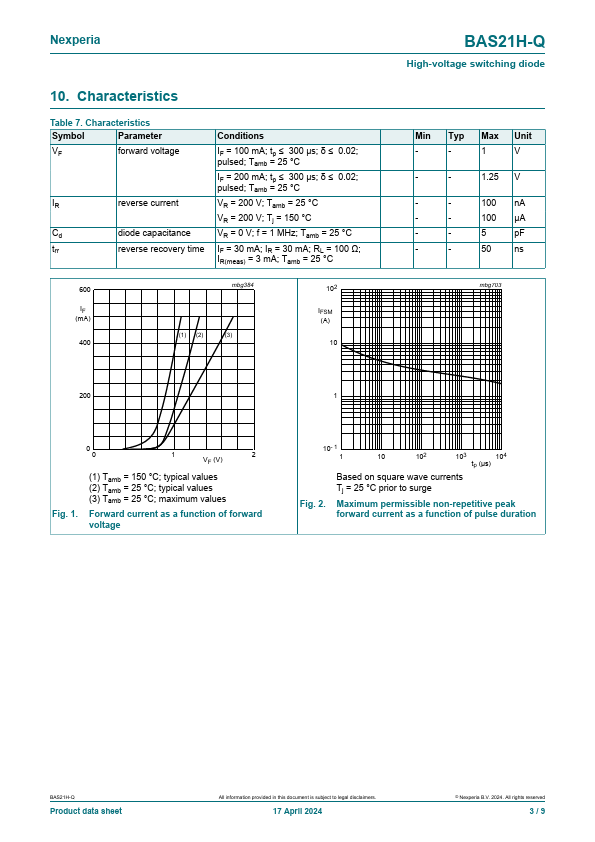

Graphic...
