BAS416 Datasheet PDF

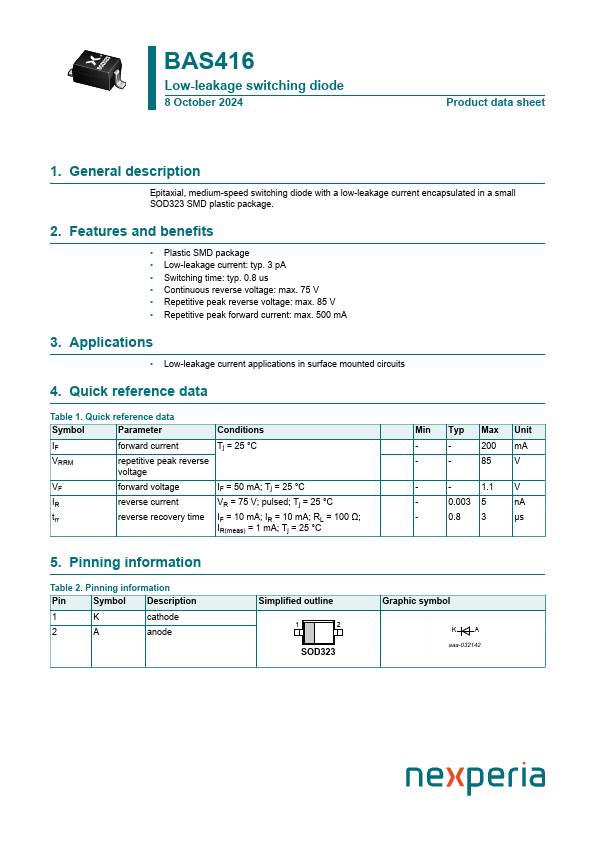

FEATURES AND BENEFITS

● Plastic SMD package
● Low-leakage current: typ. 3 pA
● Switching time: typ. 0.8 us
● Continuous reverse voltage: max. 75 V
● Repetitive peak reverse voltage: max. 85 V
● Repetitive peak forward current: max. 500 mA 3.

APPLICATIONS

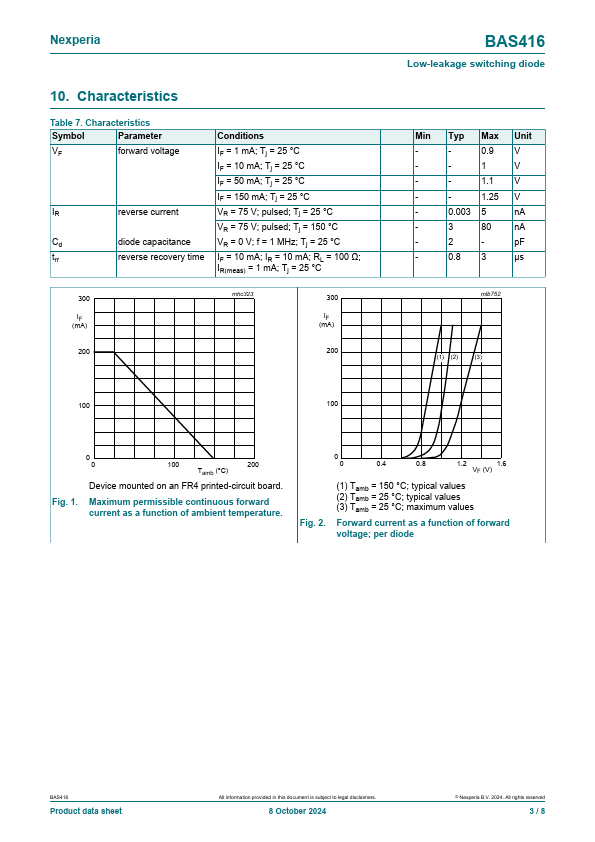

● Low-leakage current applications in surface mounted circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions IF forward current Tj = 25 °C VRRM repetitive peak reverse voltage VF forward voltage IF = 50 mA; Tj = 25 °C IR reverse current VR = 75 V; pulsed; Tj = 25 °C trr reverse recovery time IF = 10 mA; IR = 10 mA; RL = 100 Ω; IR(meas) = 1 mA; Tj = 25 °C Min Typ Max Unit - - 200 mA - - 85 V - - 1.1 V - 0.003 5 nA - 0.8 3 µs 5. Pinning information Table 2. Pinning information Pin Symbol

DESCRIPTION

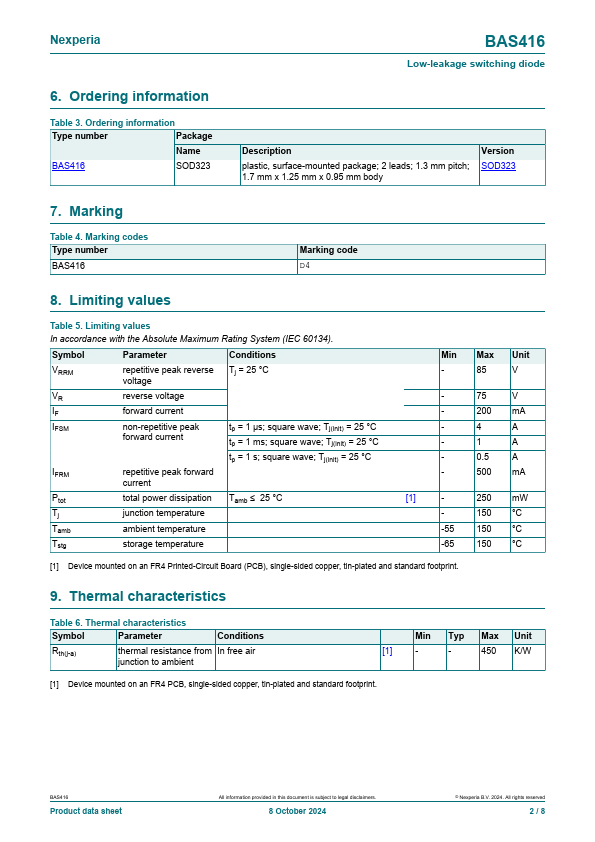

1 K cathode 2 A anode Simplified outline 1 2 SOD323 Graphic symbol K A aaa-032142 Nexperia BAS416 Low-leakage switching diode 6. Ordering information Table 3. Ordering information Type number Package Name BAS416 SOD323

DESCRIPTION

plastic, surface-mounted package; 2 leads; 1.3 mm pitch; 1.7 mm x 1.25 mm x 0.95 mm body Version SOD323 7.
