BAT854CW - 200mA Schottky barrier dual diode

Datasheet Summary

Description

Planar Schottky barrier dual diode with an integrated guard ring for stress protection, encapsulated in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.

2.

Features

  • Very low forward voltage.
  • Very low reverse current.
  • Guard ring protected.
  • Very small SMD plastic package.
  • AEC-Q101 qualified 3.

📥 Download Datasheet

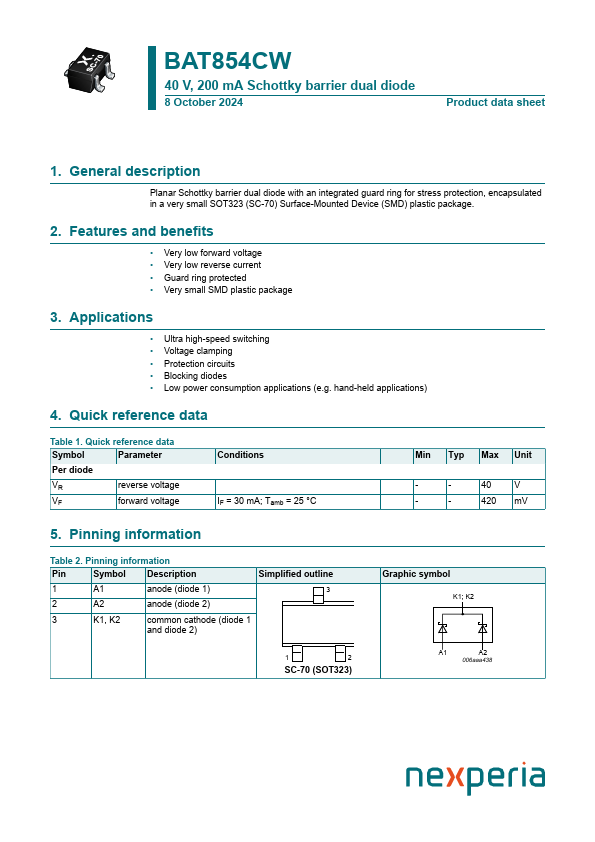

Datasheet preview – BAT854CW

Datasheet Details

Part number BAT854CW
Manufacturer nexperia
File Size 184.28 KB
Description 200mA Schottky barrier dual diode
Datasheet download datasheet BAT854CW Datasheet

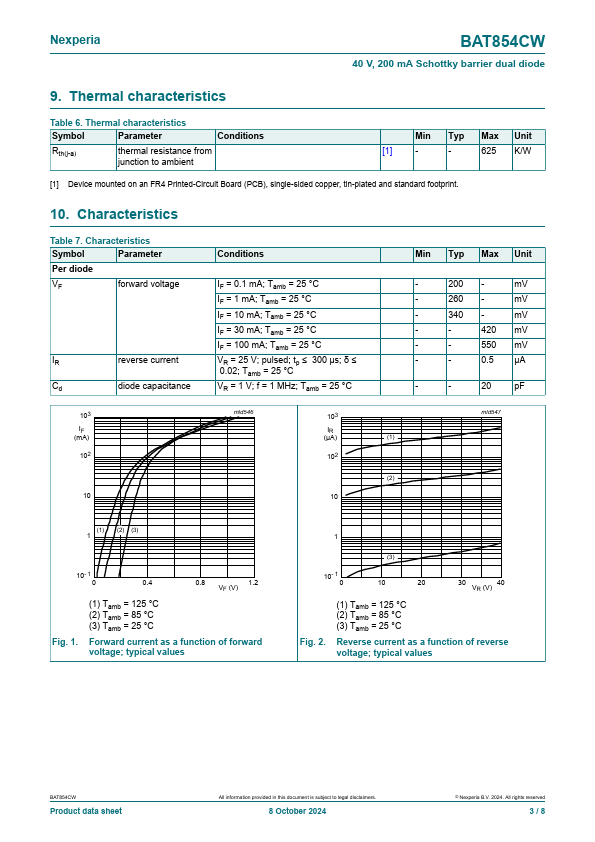

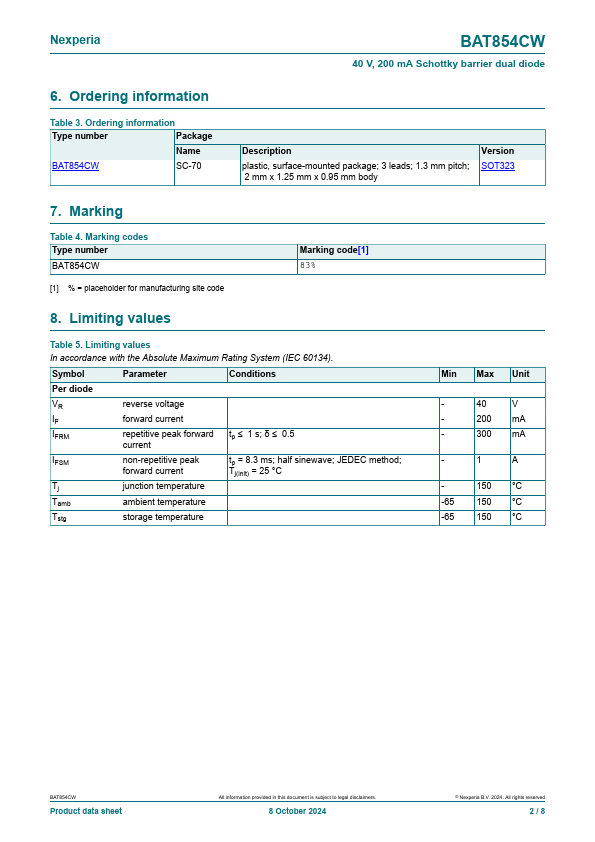

Additional preview pages of the BAT854CW datasheet.

📁 Similar Datasheet

  • BAT854CW - Schottky barrier (double) diodes (Guangdong Kexin Industrial)
  • BAT854CW - Schottky barrier (double) diodes (NXP Semiconductors)
  • BAT854AW - Schottky barrier (double) diodes (NXP Semiconductors)
  • BAT854AW - Schottky barrier (double) diodes (Guangdong Kexin Industrial)
  • BAT854SW - Schottky barrier (double) diodes (Guangdong Kexin Industrial)
  • BAT854SW - Schottky barrier (double) diodes (NXP Semiconductors)
  • BAT854W - Schottky barrier (double) diodes (Guangdong Kexin Industrial)
  • BAT854W - Schottky barrier (double) diodes (NXP Semiconductors)
  • BAT85 - Schottky Diodes (General Semiconductor)
  • BAT85 - Schottky barrier single diode (NXP)
Other Datasheets by nexperia
  • BAT120A - Schottky barrier double diodes
  • BAT165A - Schottky barrier rectifier
  • BAT32LS - General-purpose Schottky diode
  • BAT46GW - 250mA Schottky barrier diode
  • BAT46WH - Single Schottky barrier diode
  • BAT46WJ - Single Schottky barrier diode
  • BAT54 - Schottky barrier diodes
  • BAT54A - Schottky barrier diode

Full PDF Text Transcription

Click to expand full text
BAT854CW 40 V, 200 mA Schottky barrier dual diode 4 January 2023 Product data sheet 1. General description Planar Schottky barrier dual diode with an integrated guard ring for stress protection, encapsulated in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package. 2. Features and benefits • Very low forward voltage • Very low reverse current • Guard ring protected • Very small SMD plastic package • AEC-Q101 qualified 3. Applications • Ultra high-speed switching • Voltage clamping • Protection circuits • Blocking diodes • Low power consumption applications (e.g. hand-held applications) 4. Quick reference data Table 1.
