BAT854AW datasheet by Nexperia.
| Part number | BAT854AW |
|---|---|
| Datasheet | BAT854AW-nexperia.pdf |
| File Size | 477.68 KB |
| Manufacturer | Nexperia |
| Description | 40V 200mA Schottky barrier dual diode |
|
|

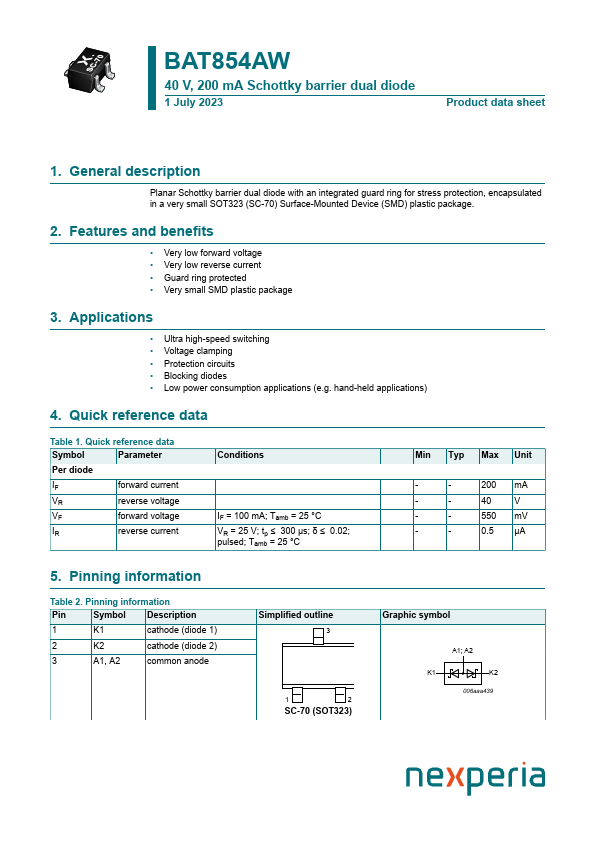

Planar Schottky barrier dual diode with an integrated guard ring for stress protection, encapsulated in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.
