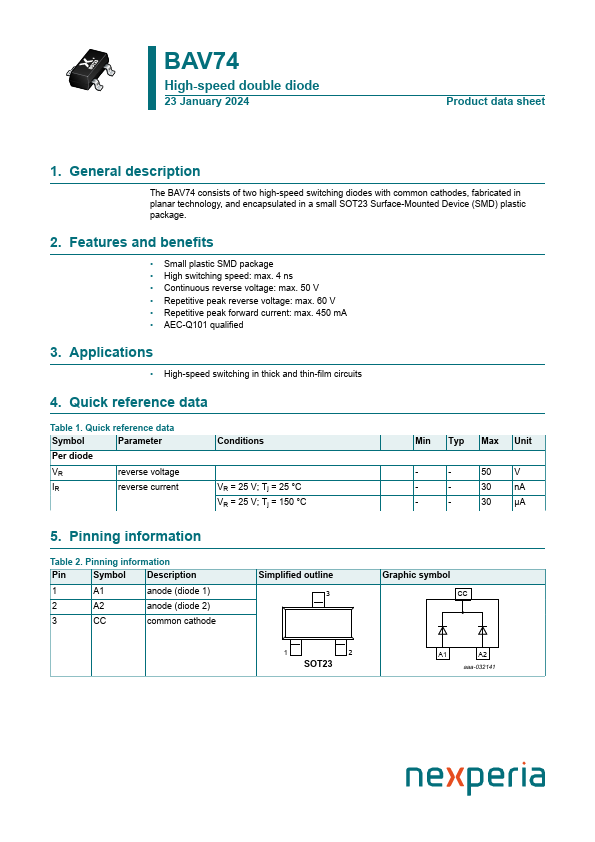

BAV74
BAV74 is High-speed double diode manufactured by Nexperia.
description
The BAV74 consists of two high-speed switching diodes with mon cathodes, fabricated in planar technology, and encapsulated in a small SOT23 Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- Small plastic SMD package
- High switching speed: max. 4 ns
- Continuous reverse voltage: max. 50 V
- Repetitive peak reverse voltage: max. 60 V
- Repetitive peak forward current: max. 450 m A
- AEC-Q101 qualified
3. Applications
- High-speed switching in thick and thin-film circuits
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
Per diode
VR reverse voltage
IR reverse current
Conditions
VR = 25 V; Tj = 25 °C VR = 25 V; Tj = 150 °C
Min Typ Max Unit
- -
- -
30 n A
- -
µA
5. Pinning information
Table 2. Pinning information
Pin
Symbol Description
A1 anode (diode 1)
A2 anode (diode 2)
CC mon cathode
Simplified...
