BCX54 - 1A NPN medium power transistors

Nexperia

General Description

NPN medium power transistor series in Surface-Mounted Device (SMD) plastic packages.

Table 1.

[1] Valid for all available selection groups.

Key Features

High current.
Three current gain selections.
High power dissipation capability.
Exposed heatsink for excellent thermal and electrical conductivity (SOT89, SOT1061).
Leadless very small SMD plastic package with medium power capability (SOT1061).
AEC-Q101 qualified 1.3.

📥 Download Datasheet

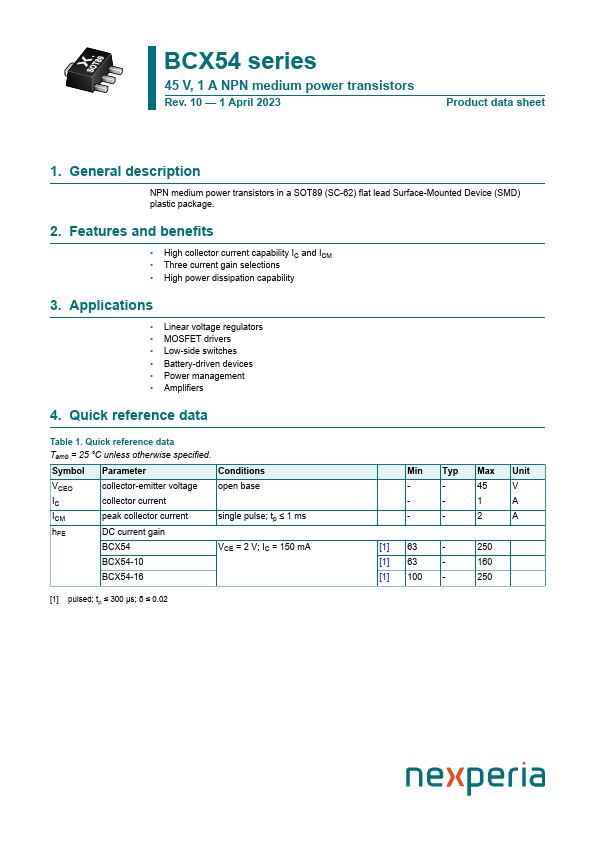

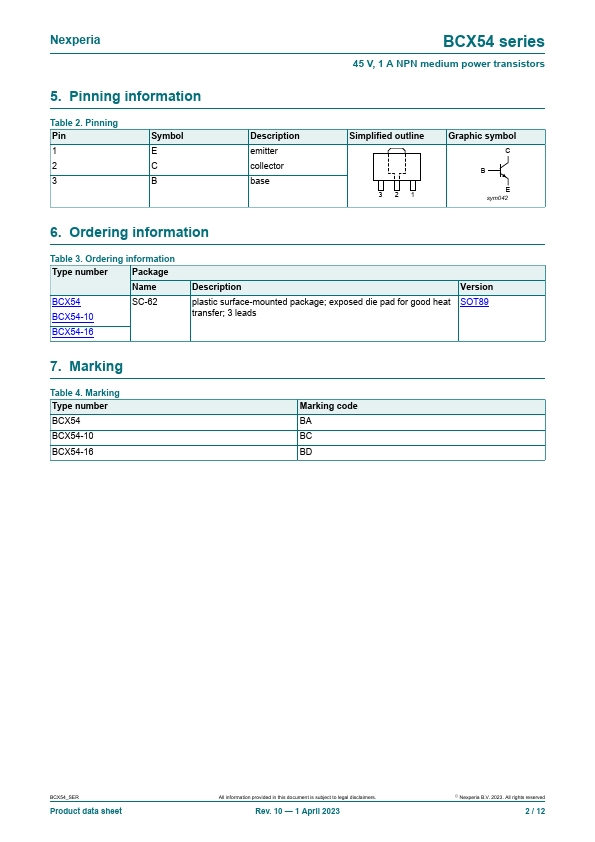

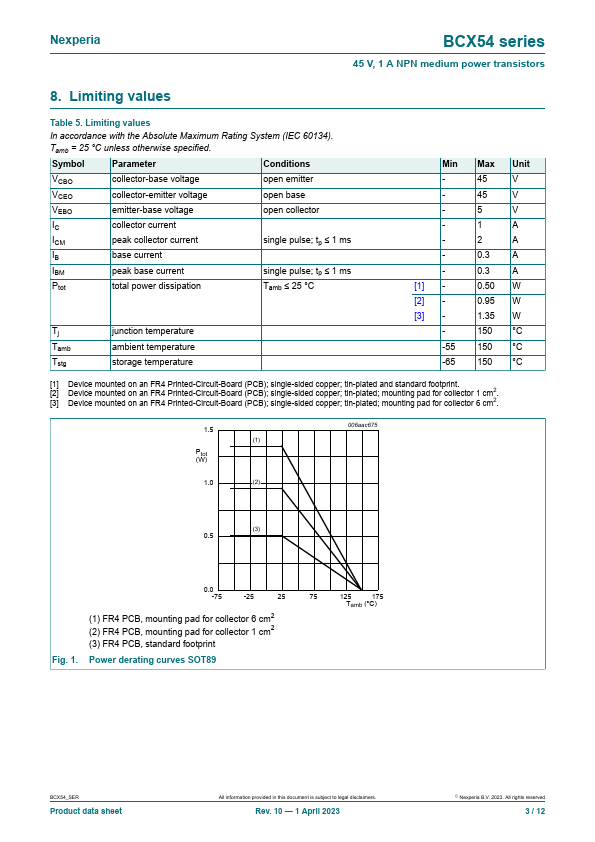

BCX54 1a npn medium power transistors by Nexperia - Datasheet Preview
