| Part number | BCX54 |
|---|---|
| Datasheet | BCX54-CentralSemiconductor.pdf |
| File Size | 636.25 KB |
| Manufacturer | Central Semiconductor |
| Description | SURFACE MOUNT NPN SILICON TRANSISTOR |
|
|

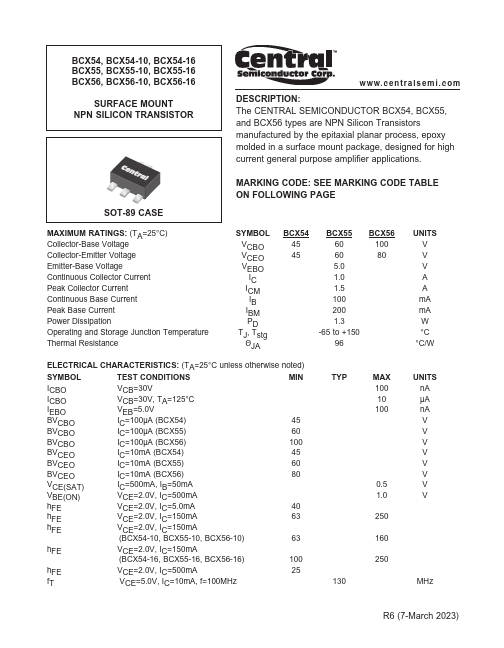

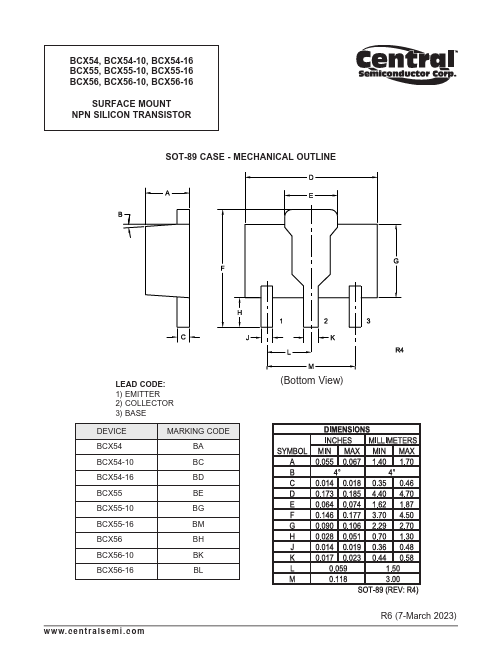

The CENTRAL SEMICONDUCTOR BCX54, BCX55, and BCX56 types are NPN Silicon Transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for high current general purpose amplifier applications. SOT-89 CASE MARKING CODE: SEE MARKING CODE TABLE ON FOLLOWING PAGE MAXIMUM RATINGS:.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
BCX54 | NPN medium power transistors | NXP |
 |
BCX54 | NPN Silicon AF Transistors | Infineon Technologies AG |
 |
BCX54 | 45V 1A NPN medium power transistors | nexperia |
 |
BCX54 | NPN Silicon AF Transistors | Bruckewell |
 |
BCX54 | NPN Silicon AF Transistor | Multicomp |
