BSR33
description

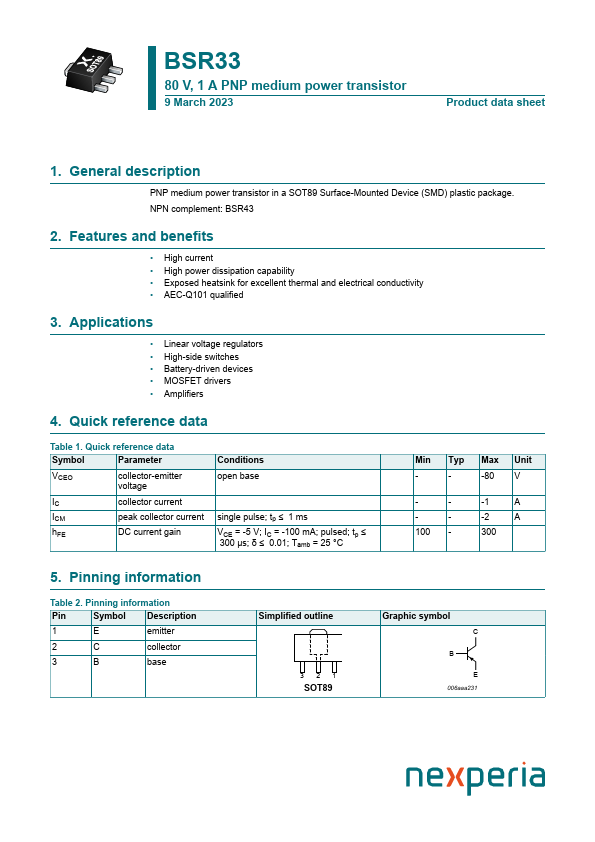

PNP medium power transistor in a SOT89 Surface-Mounted Device (SMD) plastic package. NPN plement: BSR43
2. Features and benefits
- High current
- High power dissipation capability
- Exposed heatsink for excellent thermal and electrical conductivity
- AEC-Q101 qualified
3. Applications
- Linear voltage regulators
- High-side switches
- Battery-driven devices
- MOSFET drivers
- Amplifiers
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VCEO collector-emitter voltage
IC collector current
ICM peak collector current h FE
DC current gain
Conditions open base single pulse; tp ≤ 1 ms VCE = -5 V; IC = -100 m A; pulsed; tp ≤ 300 µs; δ ≤ 0.01; Tamb = 25 °C
Min Typ Max Unit
- -
-80 V
- -
- -
- -1
-2
5. Pinning information
Table 2. Pinning information
Pin
Symbol Description
E emitter
C...
