BSR30 - 1A PNP medium power transistor

Datasheet Summary

Description

PNP medium power transistor in a SOT89 Surface-Mounted Device (SMD) plastic package.

Features

High current.
High power dissipation capability.
Exposed heatsink for excellent thermal and electrical conductivity.
AEC-Q101 qualified 3.

nexperia

📥 Download Datasheet

Datasheet Details

Part number	BSR30
Manufacturer	nexperia
File Size	176.97 KB
Description	1A PNP medium power transistor
Datasheet	BSR30 Datasheet

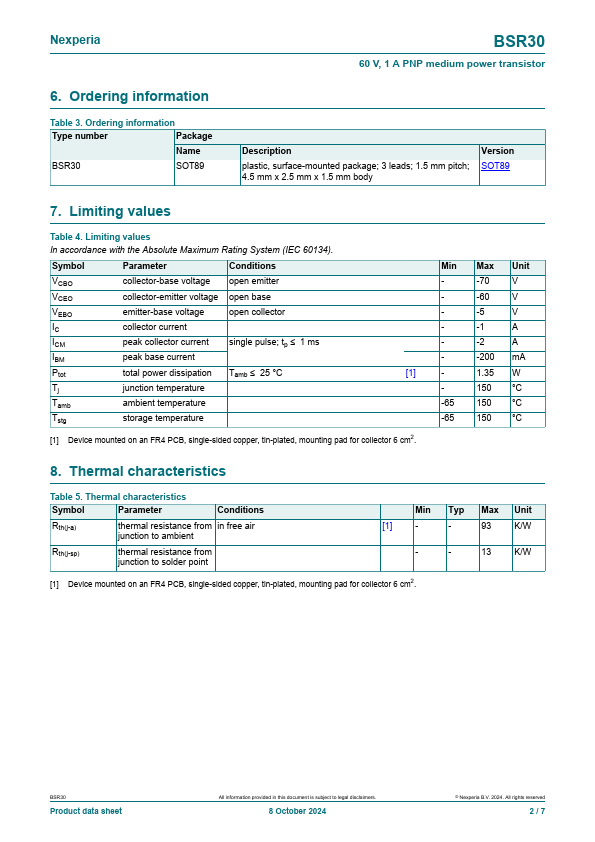

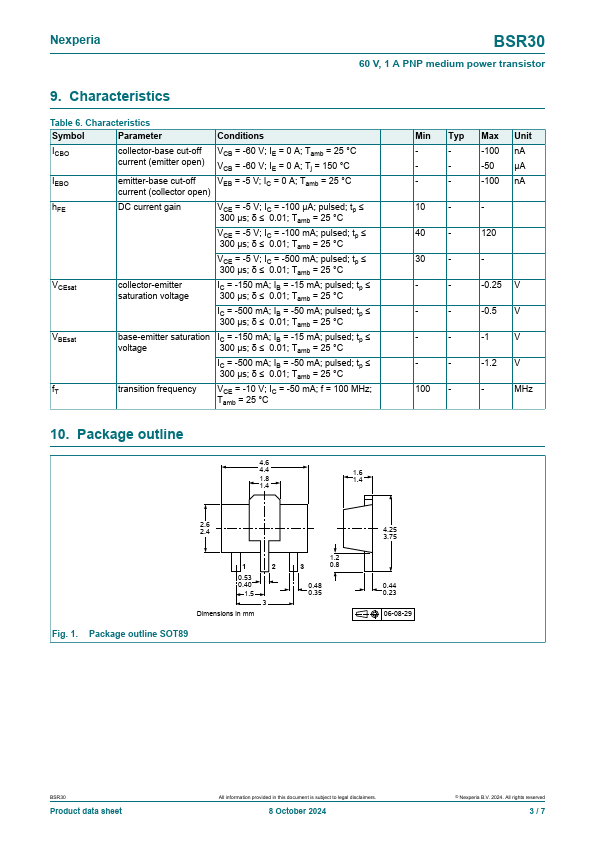

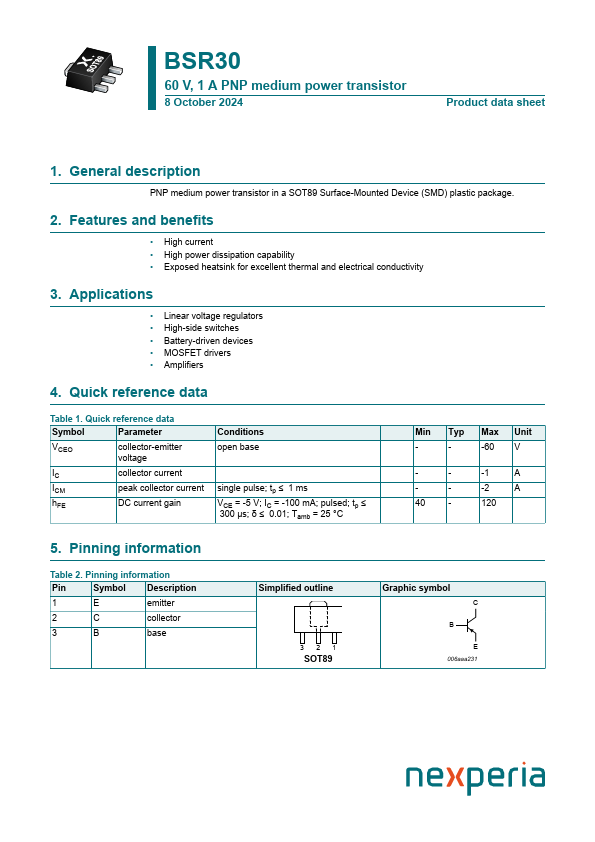

Additional preview pages of the BSR30 datasheet.

📁 Similar Datasheet

BSR30 - PNP medium power transistors (NXP)
BSR30 - PNP Medium power transistors (GME)
BSR30 - PNP Transistor (Kexin)
BSR302N - Small-Signal-Transistor (Infineon Technologies)
BSR31 - PNP medium power transistors (NXP)
BSR31 - PNP Medium power transistors (GME)
BSR31 - SMALL SIGNAL PNP TRANSISTORS (STMicroelectronics)
BSR31 - PNP Transistor (Kexin)
BSR315P - Small-Signal-Transistor (Infineon Technologies)
BSR316P - Small-Signal-Transistor (Infineon Technologies)

Other Datasheets by nexperia

BSR16 - PNP switching transistor

Full PDF Text Transcription

Click to expand full text

BSR30 60 V, 1 A PNP medium power transistor 10 March 2023 Product data sheet 1. General description PNP medium power transistor in a SOT89 Surface-Mounted Device (SMD) plastic package. 2. Features and benefits • High current • High power dissipation capability • Exposed heatsink for excellent thermal and electrical conductivity • AEC-Q101 qualified 3. Applications • Linear voltage regulators • High-side switches • Battery-driven devices • MOSFET drivers • Amplifiers 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current ICM peak collector current hFE DC current gain Conditions open base single pulse; tp ≤ 1 ms VCE = -5 V; IC = -100 mA; pulsed; tp ≤ 300 µs; δ ≤ 0.
