PMEG3015EH - MEGA Schottky barrier rectifiers

Description

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection, encapsulated in small and flat lead SMD plastic packages.

Table 1.

Features

  • Forward current: ≤ 1.5 A.
  • Reverse voltage: ≤ 30 V.
  • Ultra low forward voltage.
  • Small and flat lead SMD plastic packages 1.3.

📥 Download Datasheet

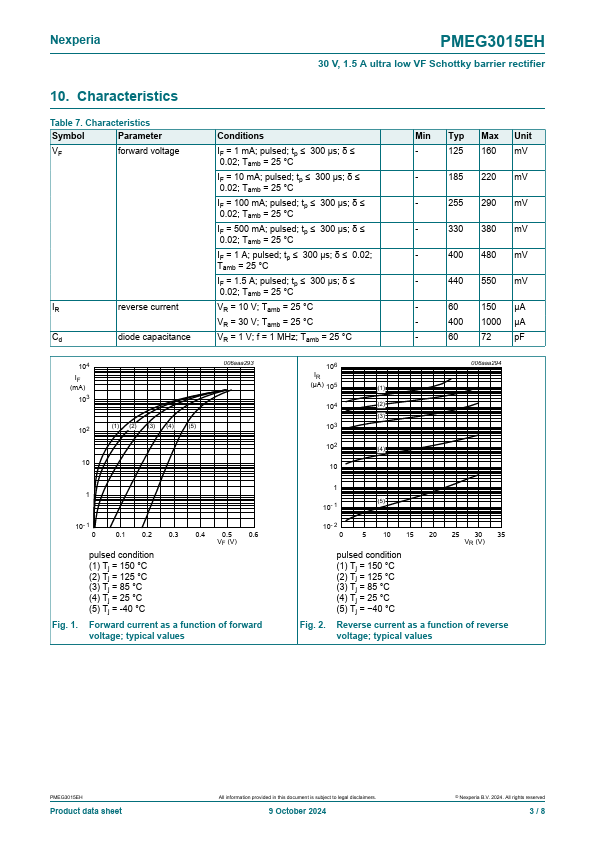

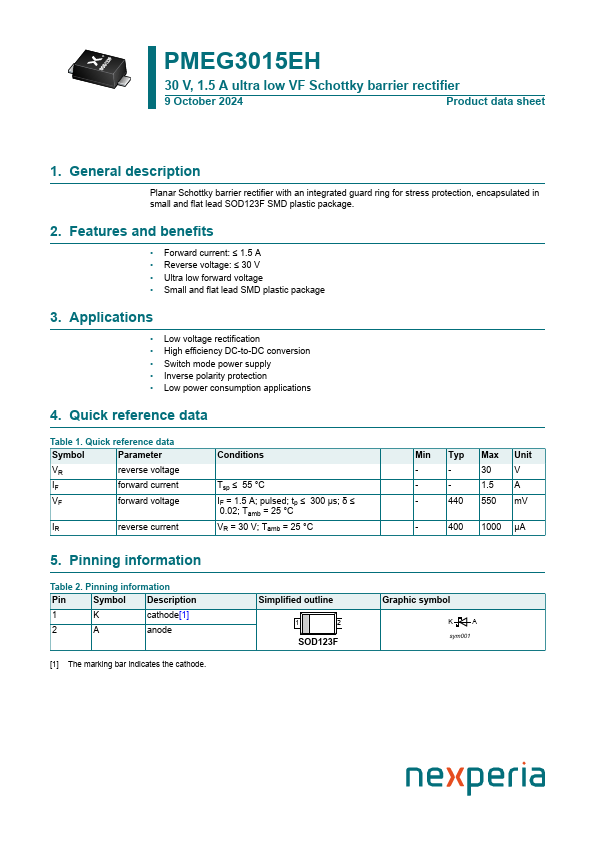

Datasheet preview – PMEG3015EH

Datasheet Details

Part number PMEG3015EH
Manufacturer nexperia
File Size 639.33 KB
Description MEGA Schottky barrier rectifiers
Datasheet download datasheet PMEG3015EH Datasheet
Additional preview pages of the PMEG3015EH datasheet.

📁 Similar Datasheet

  • PMEG3015EH - 1.5A ULTRA LOW VFMEGA SCHOTTKY BARRIER RECTIFIERS (NXP Semiconductors)
  • PMEG3015EJ - 1.5A ULTRA LOW VFMEGA SCHOTTKY BARRIER RECTIFIERS (NXP Semiconductors)
  • PMEG3015EV - 1.5A ultra low VF MEGA Schottky barrier rectifier (NXP Semiconductors)
  • PMEG3010AESA - MEGA Schottky barrier rectifier (NXP)
  • PMEG3010AESB - MEGA Schottky barrier rectifier (NXP)
  • PMEG3010BEA - 1A very low VF MEGA Schottky barrier rectifier (NXP Semiconductors)
  • PMEG3010BEP - 1A Low Vf MEGA Schottky Barrier Rectifier (NXP)
  • PMEG3010BER - 1A Low Vf MEGA Schottky Barrier Rectifier (NXP)
  • PMEG3010BEV - 1A very low VF MEGA Schottky barrier rectifier (NXP Semiconductors)
  • PMEG3010CEH - MEGA Schottky barrier rectifier (NXP)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text
PMEG3015EH; PMEG3015EJ 30 V, 1.5 A ultra low VF MEGA Schottky barrier rectifiers Rev. 03 — 13 January 2010 Product data sheet 1. Product profile 1.1 General description Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection, encapsulated in small and flat lead SMD plastic packages. Table 1. Product overview Type number Package Nexperia PMEG3015EH SOD123F PMEG3015EJ SOD323F JEITA SC-90 Configuration single diode single diode 1.2 Features „ Forward current: ≤ 1.5 A „ Reverse voltage: ≤ 30 V „ Ultra low forward voltage „ Small and flat lead SMD plastic packages 1.
