NSP340A Overview
Key Specifications

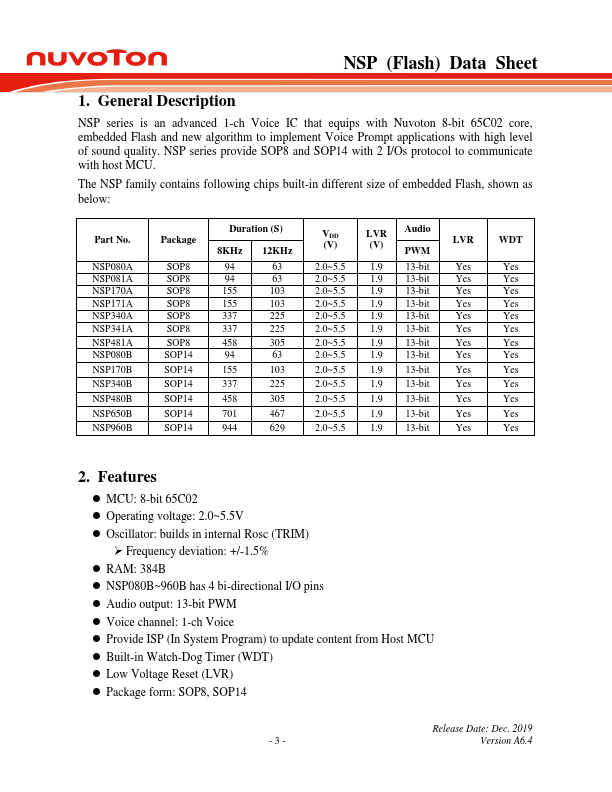

Description
NSP series is an advanced 1-ch Voice IC that equips with Nuvoton 8-bit 65C02 core, embedded Flash and new algorithm to implement Voice Prompt applications with high level of sound quality. NSP series provide SOP8 and SOP14 with 2 I/Os protocol to communicate with host MCU.
Key Features
- MCU: 8-bit 65C02
- Operating voltage: 2.0~5.5V
- Oscillator: builds in internal Rosc (TRIM)
- Frequency deviation: +/-1.5%
- NSP080B~960B has 4 bi-directional I/O pins
- Audio output: 13-bit PWM
- Voice channel: 1-ch Voice
