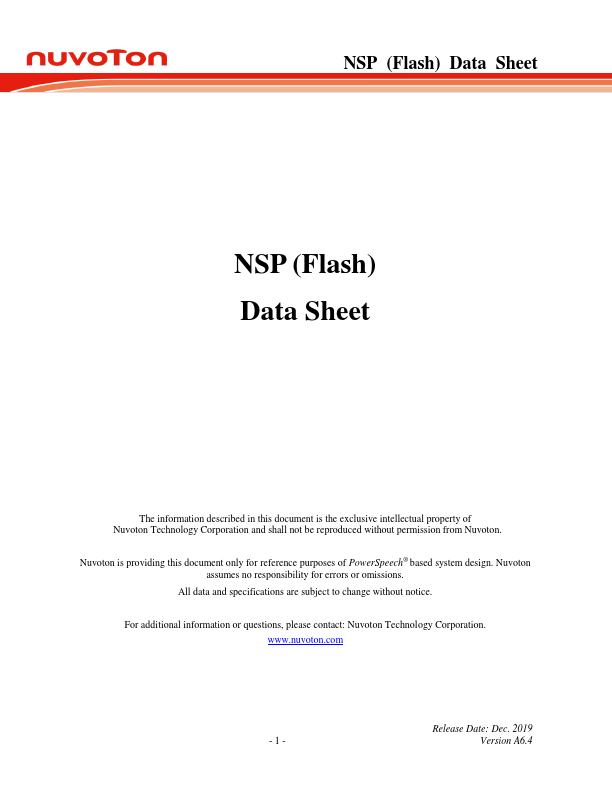

NSP (Flash) Data Sheet NSP (Flash) Data Sheet The information described in this document is the exclusive intellectual property of Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton. Nuvoton is providing this document only for reference purposes of Power Speech® based system design. Nuvoton assumes no responsibility for errors or omissions. All data and specifications are subject to change without notice. For additional information or questions, please contact: Nuvoton Technology Corporation. .nuvoton. Release Date: Dec. 2019 -1- Version A6.4 NSP (Flash) Data Sheet 1. General Description NSP series is an advanced 1-ch Voice IC that equips with Nuvoton 8-bit 65C02 core, embedded Flash and new algorithm to implement Voice Prompt applications with high level of sound quality. NSP series provide SOP8 and SOP14 with 2 I/Os protocol to municate with host MCU. The NSP family contains following chips built-in different size of embedded Flash, shown as below: Part No. NSP080A NSP081A NSP170A NSP171A NSP340A NSP341A NSP481A NSP080B NSP170B NSP340B NSP480B NSP650B NSP960B Package SOP8 SOP8 SOP8 SOP8 SOP8 SOP8 SOP8 SOP14 SOP14 SOP14 SOP14 SOP14 SOP14 Duration (S) 8KHz 94 94 155 155 337 337 458 94 155 337 458 701 944 12KHz 63 63 103 103 225 225 305 63 103 225 305 467 629 VDD (V) 2.0~5.5 2.0~5.5 2.0~5.5 2.0~5.5 2.0~5.5 2.0~5.5 2.0~5.5 2.0~5.5 2.0~5.5 2.0~5.5 2.0~5.5 2.0~5.5 2.0~5.5 LVR (V) 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 1.9 Audio 13-bit 13-bit 13-bit 13-bit 13-bit 13-bit 13-bit 13-bit 13-bit 13-bit 13-bit 13-bit 13-bit Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes...
