NUC140LC1CN Overview
Key Specifications
Package: LFQFP
Mount Type: Surface Mount
Pins: 48
Operating Voltage: 3.3 V
Description

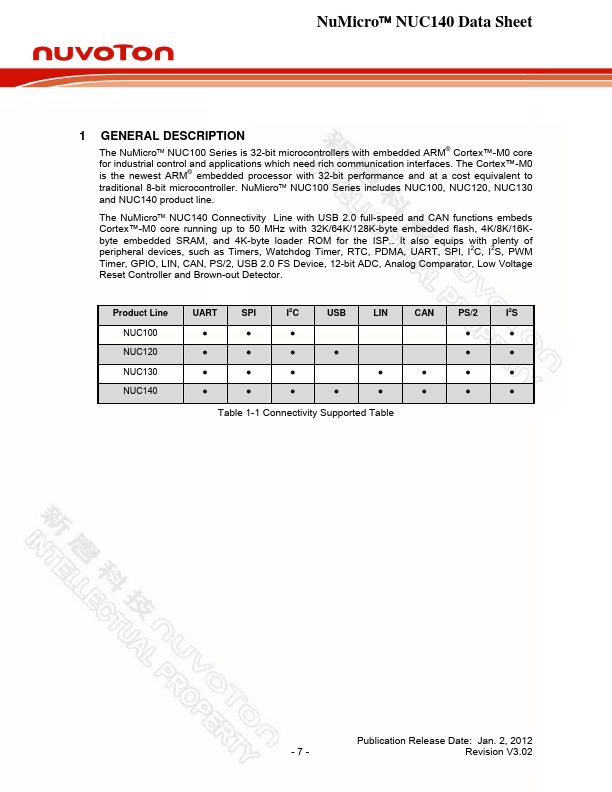

The NuMicro™ NUC100 Series is 32-bit microcontrollers with embedded ARM® Cortex™-M0 core for industrial control and applications which need rich communication interfaces. The Cortex™-M0 is the newest ARM® embedded processor with 32-bit performance and at a cost equivalent to traditional 8-bit microcontroller.

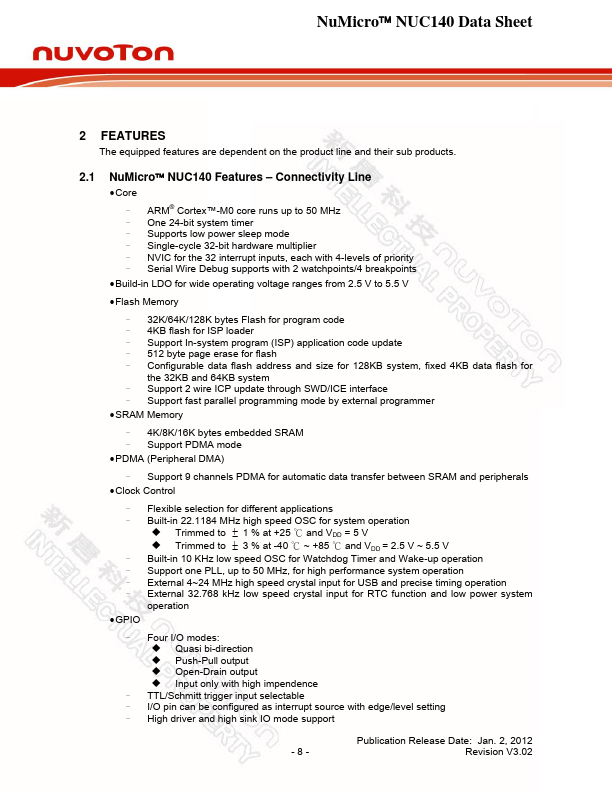

Key Features
- The equipped features are depende
