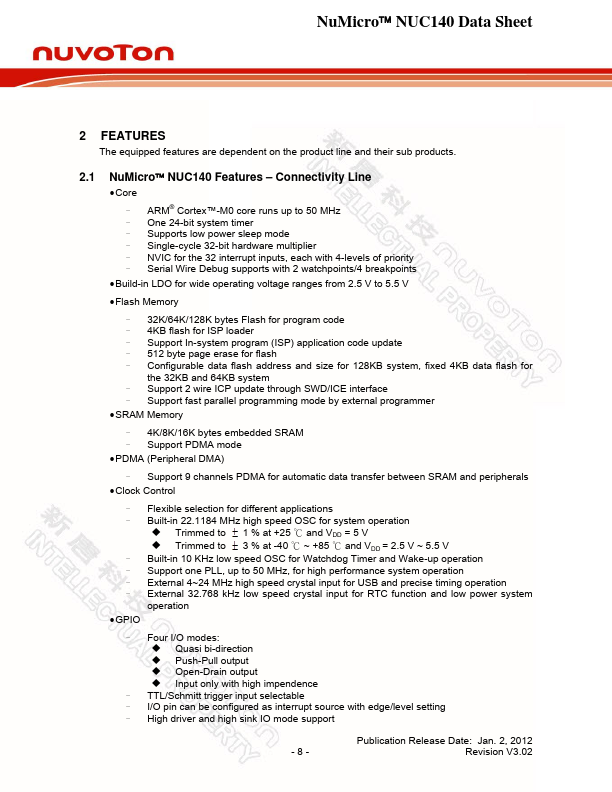

DESCRIPTION The Nu Micro™ NUC100 Series is 32-bit microcontrollers with embedded ARM® Cortex™-M0 core for industrial control and applications which need rich munication interfaces. The Cortex™-M0 is the newest ARM® embedded processor with 32-bit performance and at a cost equivalent to traditional 8-bit microcontroller. Nu Micro™ NUC100 Series includes NUC100, NUC120, NUC130 and NUC140 product line. The Nu Micro™ NUC140 Connectivity Line with USB 2.0 full-speed and CAN functions embeds Cortex™-M0 core running up to 50 MHz with 32K/64K/128K-byte embedded flash, 4K/8K/16Kbyte embedded SRAM, and 4K-byte loader ROM for the ISP.. It also equips with plenty of peripheral devices, such as Timers, Watchdog Timer, RTC, PDMA, UART, SPI, I2C, I2S, PWM Timer, GPIO, LIN, CAN, PS/2, USB 2.0 FS Device, 12-bit ADC, Analog parator, Low Voltage Reset Controller and Brown-out Detector. Product Line UART I2C PS/2 I2S NUC100 - - - - - NUC120 - - - - - - NUC130 - - - - - - - NUC140 - - - - - - - - Table 1-1 Connectivity Supported Table Publication Release Date: Jan. 2, 2012 -7- Revision V3.02 Nu Micro™ NUC140 Data Sheet 2 FEATURES The equipped features are dependent on the product line and their sub products. 2.1 Nu Micro™ NUC140 Features - Connectivity Line - Core - ARM® Cortex™-M0 core runs up to 50 MHz - One 24-bit system...
