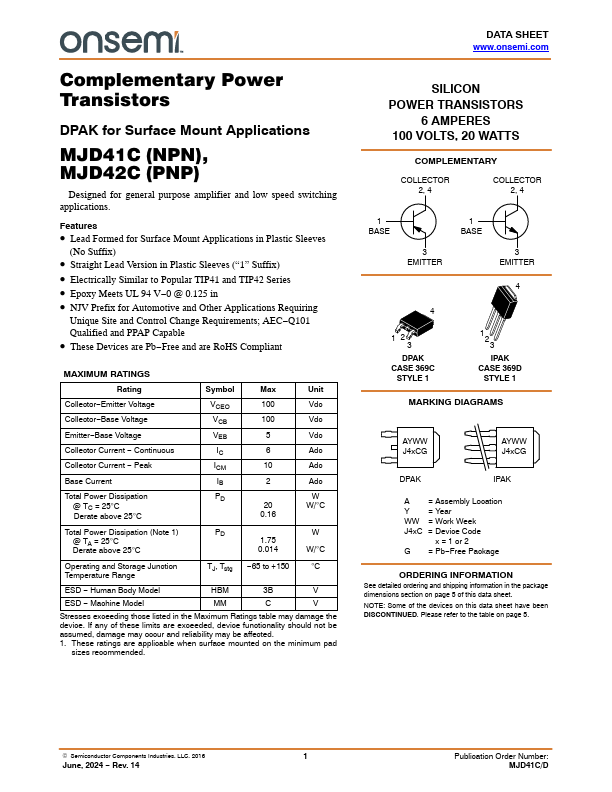

MJD42C
MJD42C is Complementary PNP Power Transistors manufactured by onsemi.
- Part of the MJD41C comparator family.
- Part of the MJD41C comparator family.
Features
- Lead Formed for Surface Mount Applications in Plastic Sleeves
(No Suffix)
- Straight Lead Version in Plastic Sleeves (“1” Suffix)
- Electrically Similar to Popular TIP41 and TIP42 Series
- Epoxy Meets UL 94 V- 0 @ 0.125 in
- NJV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable
- These Devices are Pb- Free and are Ro HS pliant

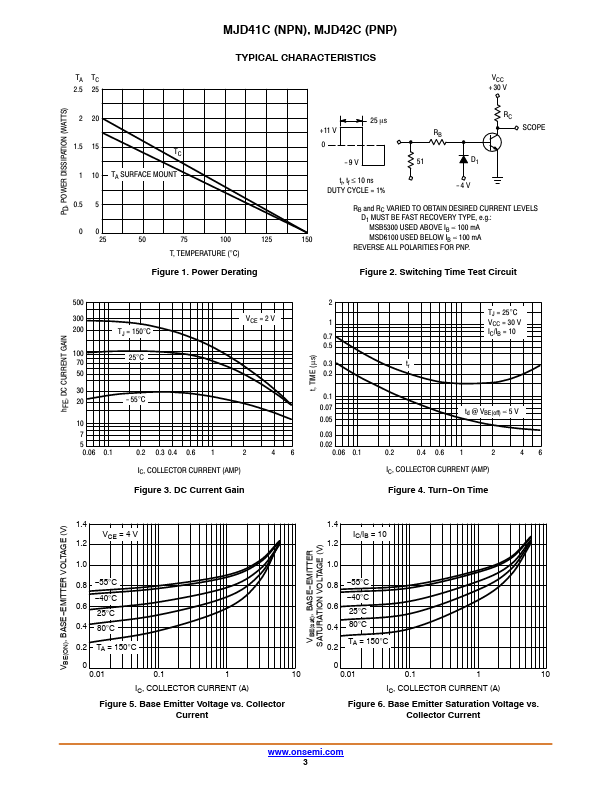

MAXIMUM RATINGS Rating
Symbol
Max
Unit
Collector- Emitter Voltage
Collector- Base Voltage
Emitter- Base Voltage
Collector Current
- Continuous
Collector Current
- Peak
Base Current
Total Power Dissipation @ TC = 25°C Derate above 25°C
VCEO VCB VEB IC ICM IB PD
100 100
5 6 10 2
20 0.16
Vdc Vdc Vdc Adc Adc Adc W W/°C
Total Power Dissipation (Note 1) @ TA = 25°C Derate above 25°C
W/°C
Operating and Storage Junction Temperature Range
TJ, Tstg
- 65 to +150
°C
- Human Body...
