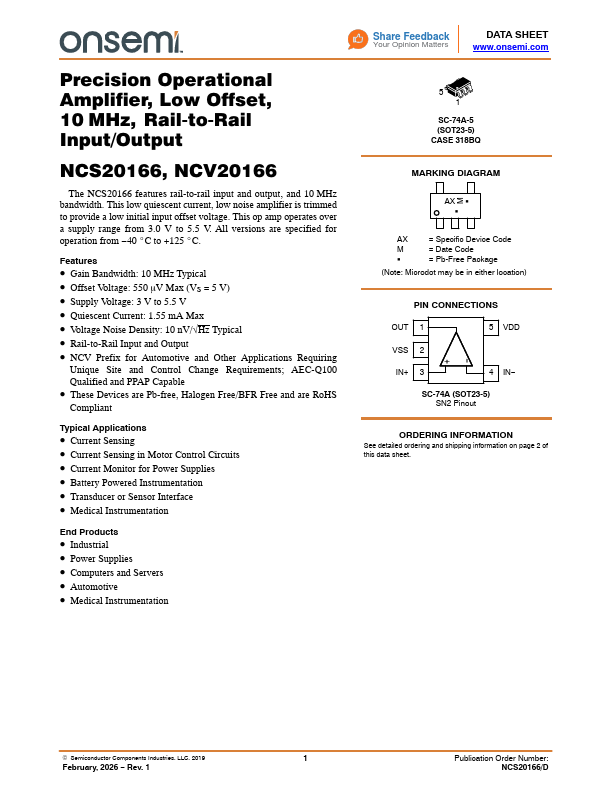

NCV20166
NCV20166 is Precision Operational Amplifier manufactured by onsemi.
Precision Operational Amplifier, Low Offset, 10 MHz, Rail-to-Rail Input/Output
NCS20166, NCV20166
The NCS20166 Features rail-to-rail input and output, and 10 MHz bandwidth. This low quiescent current, low noise amplifier is trimmed to provide a low initial input offset voltage. This op amp operates over a supply range from 3.0 V to 5.5 V. All versions are specified for operation from
- 40 _C to +125 _C.
Features
- Gain Bandwidth: 10 MHz Typical
- Offset Voltage: 550 mV Max (VS = 5 V)
- Supply Voltage: 3 V to 5.5 V
- Quiescent Current: 1.55 mA Max
- Voltage Noise Density: 10 nV/√Hz Typical
- Rail-to-Rail Input and Output
- NCV Prefix for Automotive and Other Applications Requiring
Unique...
