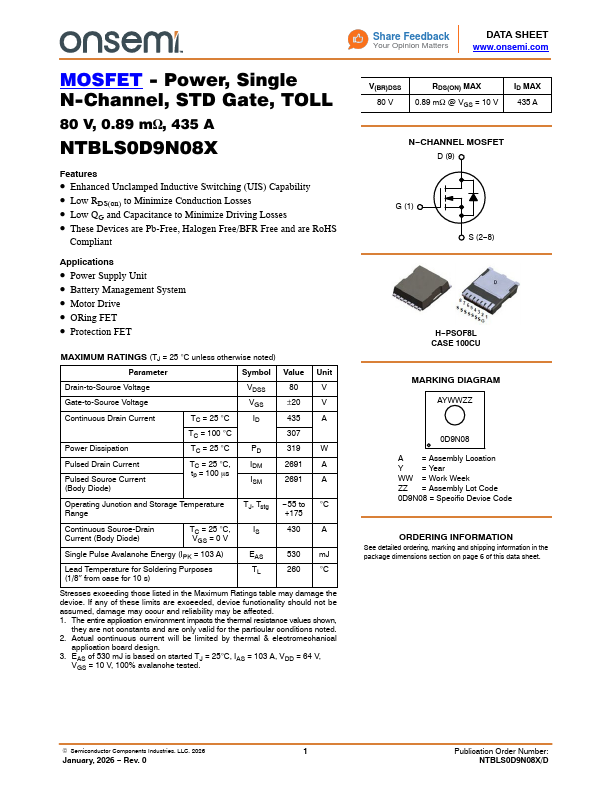

NTBLS0D9N08X
NTBLS0D9N08X is N-Channel Power MOSFET manufactured by onsemi.
MOSFET
- Power, Single N-Channel, STD Gate, TOLL
80 V, 0.89 mW, 435 A
Features
- Enhanced Unclamped Inductive Switching (UIS) Capability
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driving Losses
- These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS pliant
Applications
- Power Supply Unit
- Battery Management System
- Motor Drive
- ORing FET
- Protection FET
MAXIMUM RATINGS (TJ = 25 °C unless otherwise noted)
Parameter
Symbol Value Unit
Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current
Power Dissipation Pulsed Drain Current Pulsed Source Current (Body Diode)
VDSS
±20
TC = 25...
