PE24108 Overview

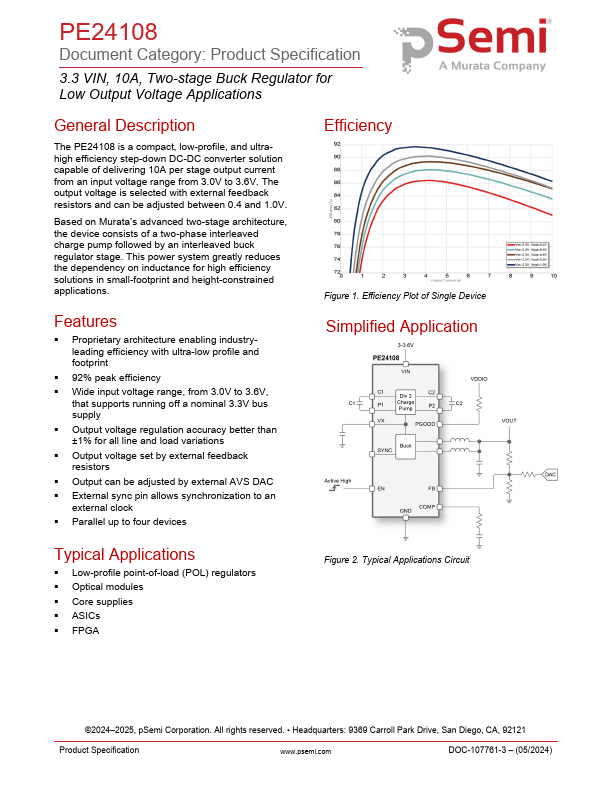

The PE24108 is a pact, low-profile, and ultrahigh efficiency step-down DC-DC converter solution capable of delivering 10A per stage output current from an input voltage range from 3.0V to 3.6V. The output voltage is selected with external feedback resistors and can be adjusted between 0.4 and 1.0V. Based on Murata’s advanced two-stage architecture, the device consists of a two-phase interleaved charge pump followed...
PE24108 Key Features
- Proprietary architecture enabling industryleading efficiency with ultra-low profile and footprint
- 92% peak efficiency
- Wide input voltage range, from 3.0V to 3.6V, that supports running off a nominal 3.3V bus supply
- Output voltage regulation accuracy better than ±1% for all line and load variations
- Output voltage set by external feedback resistors
- Output can be adjusted by external AVS DAC
- External sync pin allows synchronization to an external clock
- Parallel up to four devices
