PE25200 - 10A Charge Pump / Capacitor Divider

General Description

The PE25200 is an ultra-high efficiency charge pump that is configurable to divide down an input voltage by two or three and deliver up to 45 watts at 97% peak efficiency.

The PE25200 supports an input voltage range of 5.5V to 10V in divide-by-two mode and 8.2V to 15V in divide-by-three mode.

Key Features

  • Proprietary architecture enables industry leading efficiency with an ultra-low profile.
  • Wide input voltage range, from 5.5V to 15V, supports two- or three-cell mobile computers and 12V-bus point-of-load.

📥 Download Datasheet

Datasheet Details

Part number PE25200
Manufacturer pSemi
File Size 5.37 MB
Description 10A Charge Pump / Capacitor Divider
Datasheet download datasheet PE25200 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PE250GB40 THYRISTOR SanRex
PE250GB80 THYRISTOR SanRex
PE250HB120 THYRISTOR SanRex
PE250HB160 THYRISTOR SanRex
PE2512 CURRENT SENSOR YAGEO

Other Datasheets by pSemi

Part Number Description
PE25204 6A Charge Pump / Capacitor Divider
PE25213 10A Charge Pump / Capacitor Divider
PE23108 High-Efficiency LED Backlight Driver
PE24108 Two-stage Buck Regulator
PE24111 20A Two-stage Buck Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

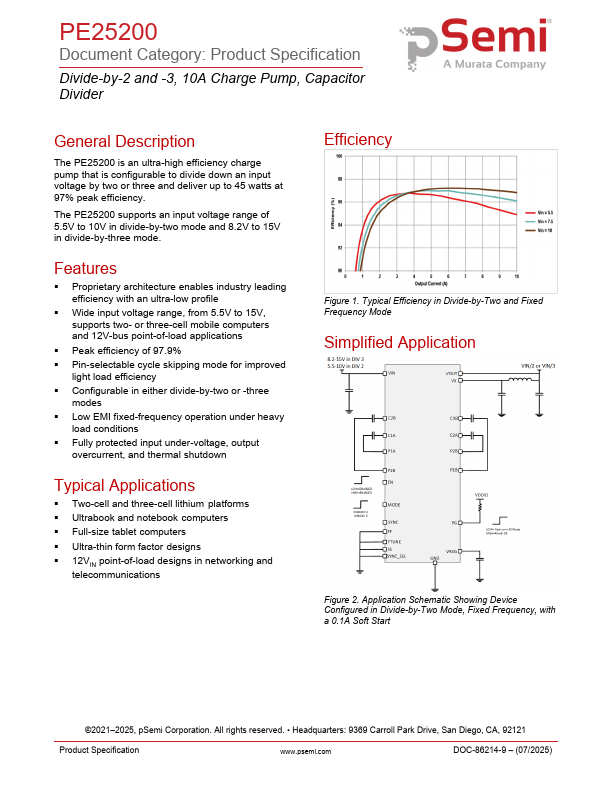

PE25200 Document Category: Product Specification Divide-by-2 and -3, 10A Charge Pump, Capacitor Divider General Description The PE25200 is an ultra-high efficiency charge pump that is configurable to divide down an input voltage by two or three and deliver up to 45 watts at 97% peak efficiency. The PE25200 supports an input voltage range of 5.5V to 10V in divide-by-two mode and 8.2V to 15V in divide-by-three mode. Features  Proprietary architecture enables industry leading efficiency with an ultra-low profile  Wide input voltage range, from 5.5V to 15V, supports two- or three-cell mobile computers and 12V-bus point-of-load applications  Peak efficiency of 97.
