RAC243

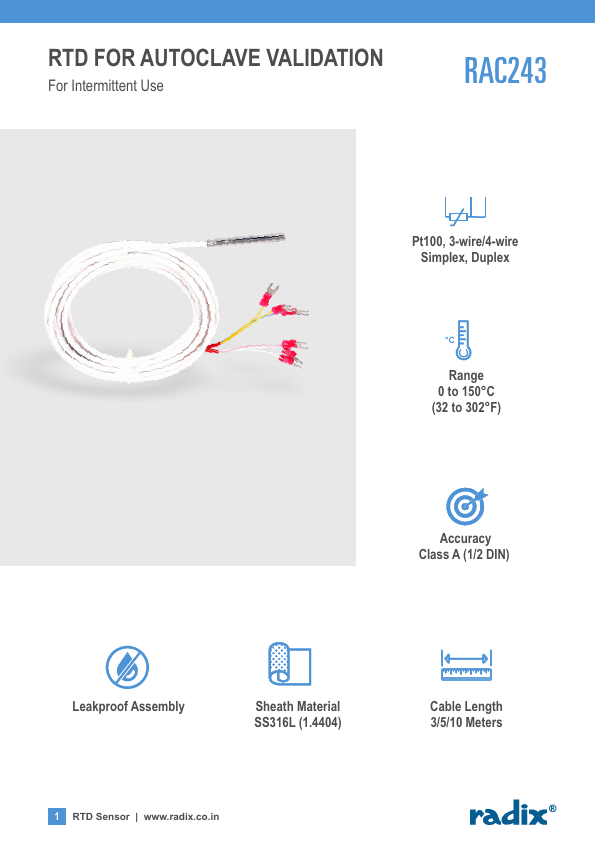

RAC243 is RTD Sensor manufactured by radix.
FEATURES n Teflon insulated cable with leakproof joint n Accuracy : Class A/Class AA n Sheath diameter : 4 mm for simplex, 6 mm for duplex n Sheath length : 50 mm standard n Wetted parts made of SS316L (1.4404)

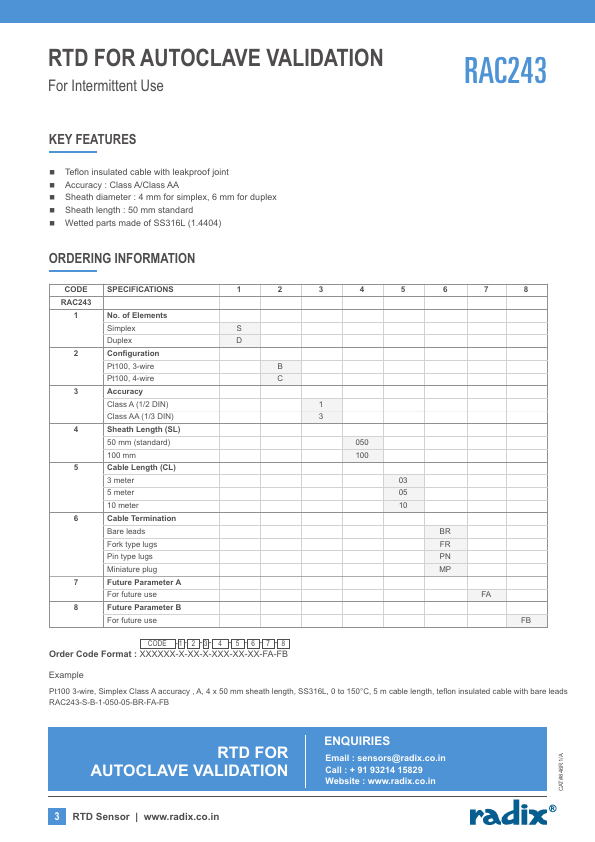

ORDERING INFORMATION
CODE RAC243
1 2 3 4 5
7 8
SPECIFICATIONS
No. of Elements Simplex Duplex Configuration Pt100, 3-wire Pt100, 4-wire Accuracy Class A (1/2 DIN) Class AA (1/3 DIN) Sheath Length (SL) 50 mm (standard) 100 mm Cable Length (CL) 3 meter 5 meter 10 meter Cable Termination Bare leads Fork type lugs Pin type lugs Miniature plug Future Parameter A For future use Future Parameter B For future use
1 3
050 100
03 05 10
BR FR PN MP
CODE
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8 Order Code Format : XXXXXX-X-XX-X-XXX-XX-XX-FA-FB
Example
Pt100 3-wire, Simplex Class A accuracy , A, 4 x 50 mm sheath length, SS316L, 0 to 150°C, 5 m cable length, teflon insulated cable with bare leads RAC243-S-B-1-050-05-BR-FA-FB
CAT#846R1/A
RTD FOR AUTOCLAVE VALIDATION
3 RTD Sensor | .radix.co.in
