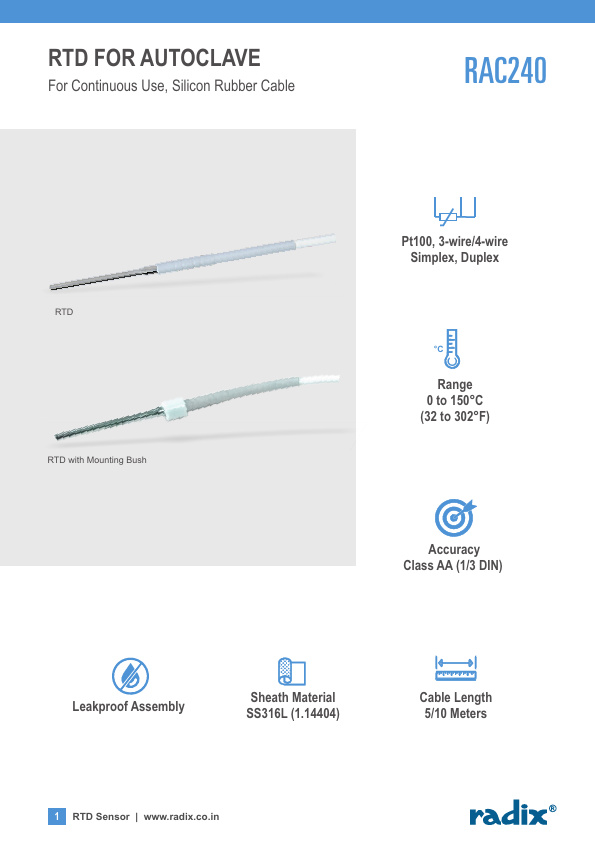

RAC240
RAC240 is RTD Sensor manufactured by radix.
FEATURES
¡ Specifically designed to withstand high pressure & temperature of the continuous sterilization process in autoclaves ¡ Capable of measuring temperature upto 150°C (302°F) ¡ pletely sealed construction ¡ Accuracy : Class AA (1/3 DIN)

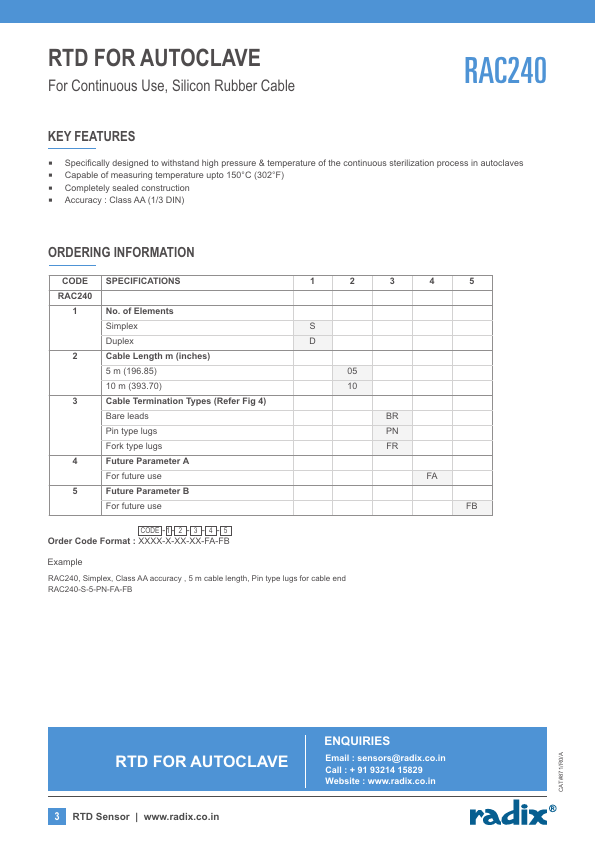

ORDERING INFORMATION
CODE RAC240
4 5
SPECIFICATIONS
No. of Elements Simplex Duplex Cable Length m (inches) 5 m (196.85) 10 m (393.70) Cable Termination Types (Refer Fig 4) Bare leads Pin type lugs Fork type lugs Future Parameter A For future use Future Parameter B For future use
05 10
BR PN FR
CODE
- 1
- 2
- 3
- 4
- 5 Order Code Format : XXXX-X-XX-XX-FA-FB
Example RAC240, Simplex, Class AA accuracy , 5 m cable length, Pin type lugs for cable end RAC240-S-5-PN-FA-FB
CAT#871/R0/A
RTD FOR AUTOCLAVE
3 RTD Sensor | .radix.co.in
