AOD466 - N-Channel MOSFET

Description

The AOD466 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

This device is suitable for use in PWM, load switching and general purpose applications.

Top View D TO-252 D-PAK Bottom View

Features

  • VDS (V) = 25V ID = 30A (VGS = 10V) RDS(ON) < 14 mΩ (VGS = 10V) RDS(ON) < 24 mΩ (VGS = 4.5V) 100% UIS Tested! 100% Rg Tested! D GS SG G S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain TC=25°C Current G TC=100°C Pulsed Drain Current C Avalanche Current C Repetitive avalanche energy 0.1mH C ID IDM IAR EAR TC=25°C Power Dissipation B TC=100°C PD TA=25°C Power Dissipation A TA=70°C PDSM.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AOD464 N-Channel MOSFET INCHANGE
AOD464 N-Channel MOSFET VBsemi
AOD468 N-Channel MOSFET INCHANGE
AOD400 N-channel 30V MOSFET VBsemi
AOD403 P-Channel MOSFET VBsemi

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AOD460 N-Channel MOSFET
AOD464 105V N-Channel MOSFET
AOD468 11.5A N-Channel MOSFET
AOD400 N-Channel MOSFET
AOD402 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

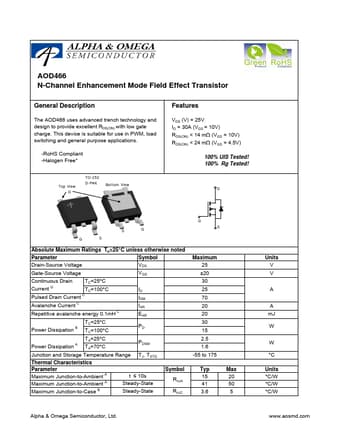

AOD466 N-Channel Enhancement Mode Field Effect Transistor General Description The AOD466 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. This device is suitable for use in PWM, load switching and general purpose applications. -RoHS Compliant -Halogen Free* Top View D TO-252 D-PAK Bottom View Features VDS (V) = 25V ID = 30A (VGS = 10V) RDS(ON) < 14 mΩ (VGS = 10V) RDS(ON) < 24 mΩ (VGS = 4.5V) 100% UIS Tested! 100% Rg Tested! D GS SG G S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain TC=25°C Current G TC=100°C Pulsed Drain Current C Avalanche Current C Repetitive avalanche energy 0.
