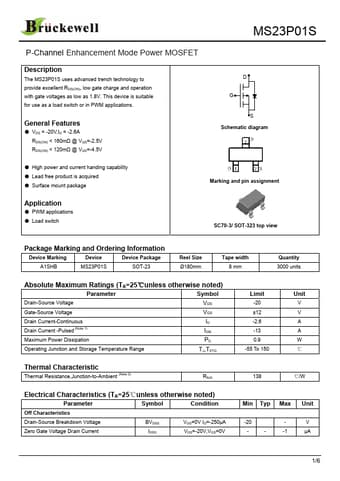

Description The MS23P01S uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 1.8V. This device is suitable for use as a load switch or in PWM applications. General Features - VDS = -20V,ID = -2.6A RDS(ON) < 160mΩ @ VGS=-2.5V RDS(ON) < 120mΩ @ VGS=-4.5V S Schematic diagram - High power and current handing capability - Lead free product is acquired - Surface mount package Marking and pin assignment Application - PWM applications - Load switch SC70-3/ SOT-323 top view Package Marking and Ordering Information Device Marking Device Device Package MS23P01S SOT-23 Reel Size Ø180mm Tape width 8 mm Quantity 3000 units Absolute Maximum Ratings (TA=25℃unless otherwise noted) Parameter Symbol Drain-Source Voltage Gate-Source Voltage Drain Current-Continuous Drain Current -Pulsed (Note 1) ID IDM Maximum Power...
