DMP6180SK3 - P-Channel MOSFET

Description

This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.

DC-DC converters Power management functions Analog switches Me

Features

  • Low On-Resistance.
  • Low Input Capacitance.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • An Automotive-Compliant Part is Available Under Separate Datasheet (DMP6180SK3Q).

📥 Download Datasheet

📁 Similar Datasheet

  • DMP6180SK3 - P-Channel MOSFET (INCHANGE)
  • DMP6180SK3-13 - P-Channel MOSFET (INCHANGE)
  • DMP6101A - Microprocessor Interface (Crydom)
  • DMP-BD755P - Blu-ray Disc Player Service Manual (Panasonic)
  • DMP-BD75GA - Blu-ray Disc Player Service Manual (Panasonic)
  • DMP-BD75GC - Blu-ray Disc Player Service Manual (Panasonic)
  • DMP-BD75GN - Blu-ray Disc Player Service Manual (Panasonic)
  • DMP-BD75GT - Blu-ray Disc Player Service Manual (Panasonic)
  • DMP-BD75GW - Blu-ray Disc Player Service Manual (Panasonic)
  • DMP-BD75P - Blu-ray Disc Player Service Manual (Panasonic)
Other Datasheets by Diodes

Full PDF Text Transcription

Click to expand full text

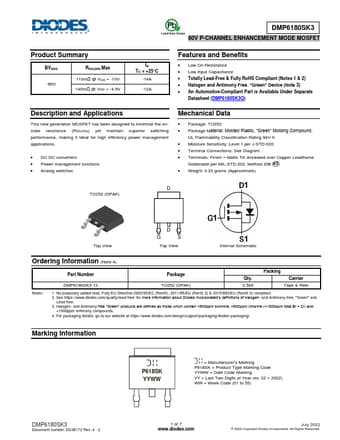

NEW PRODUCT DMP6180SK3 60V P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS -60V RDS(ON) Max 110mΩ @ VGS = -10V 140mΩ @ VGS = -4.5V ID TC = +25°C -14A -12A Features and Benefits  Low On-Resistance  Low Input Capacitance  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  An Automotive-Compliant Part is Available Under Separate Datasheet (DMP6180SK3Q) Description and Applications This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.
